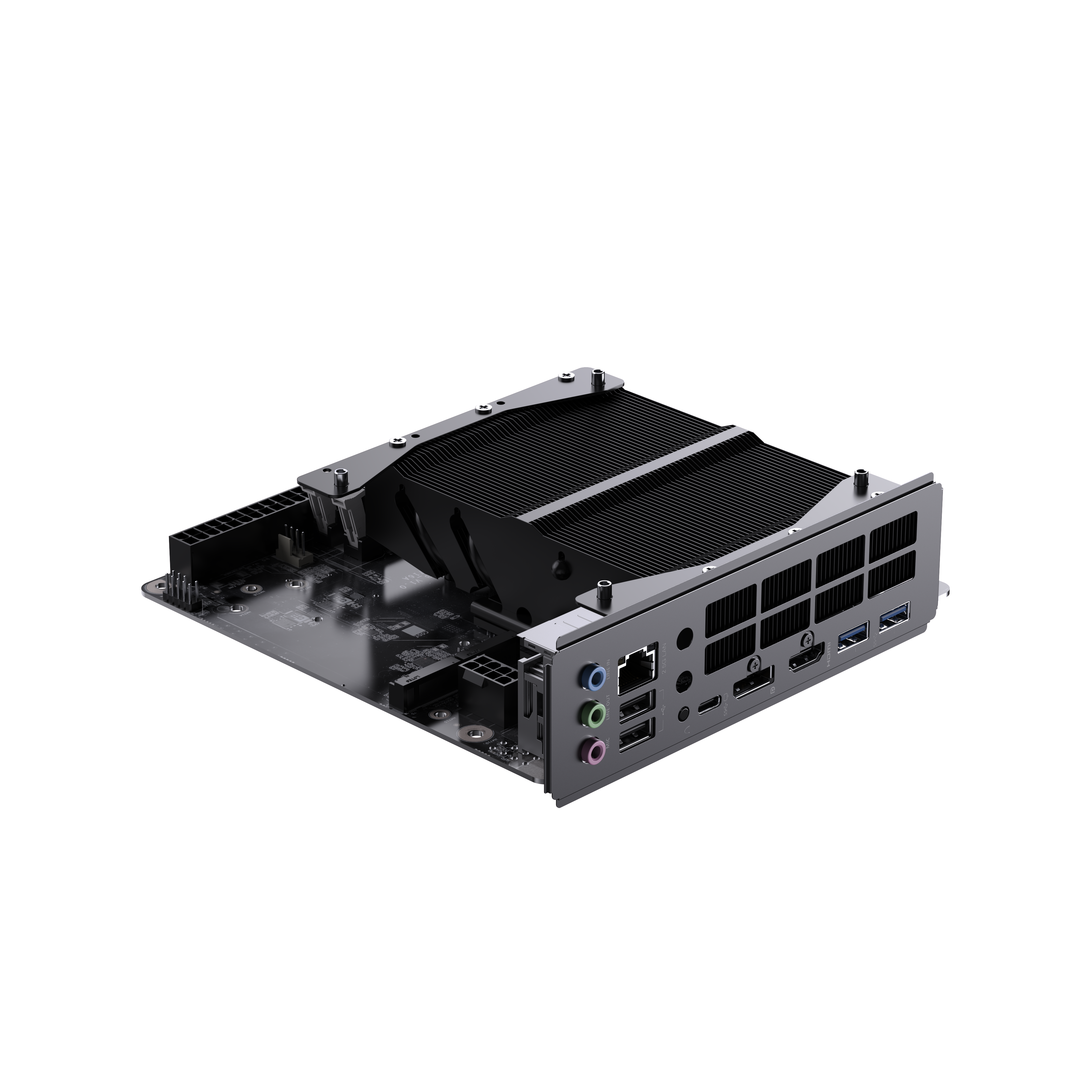

Minisforum BD895i SE Motherboard
Power at Its Core

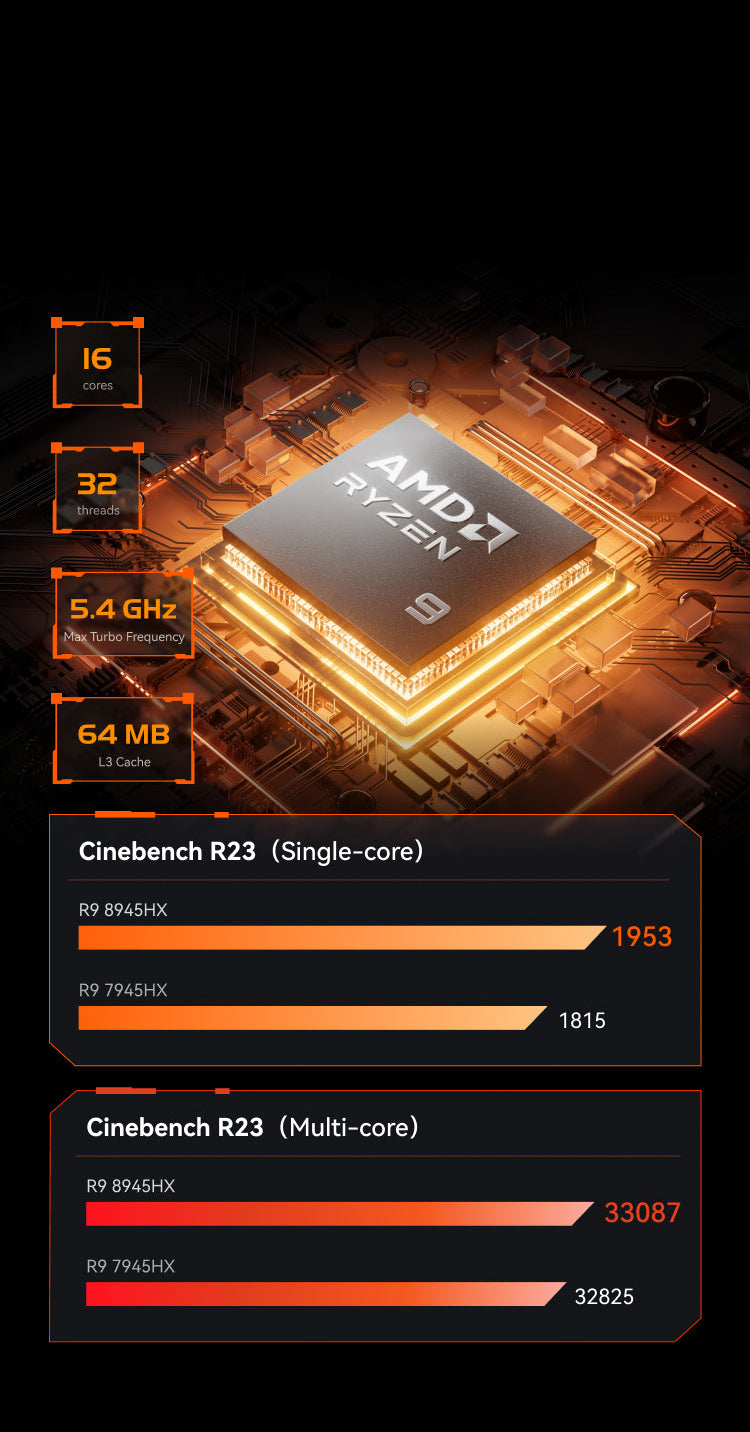

Powered by the AMD Ryzen™ 9 8945HX with 16 cores, 32 threads, and a Max Boost Clock of up to 5.4 GHz
Expansion Freedom
2 × M.2 2280 PCIe 4.0 x4
SSD Slots

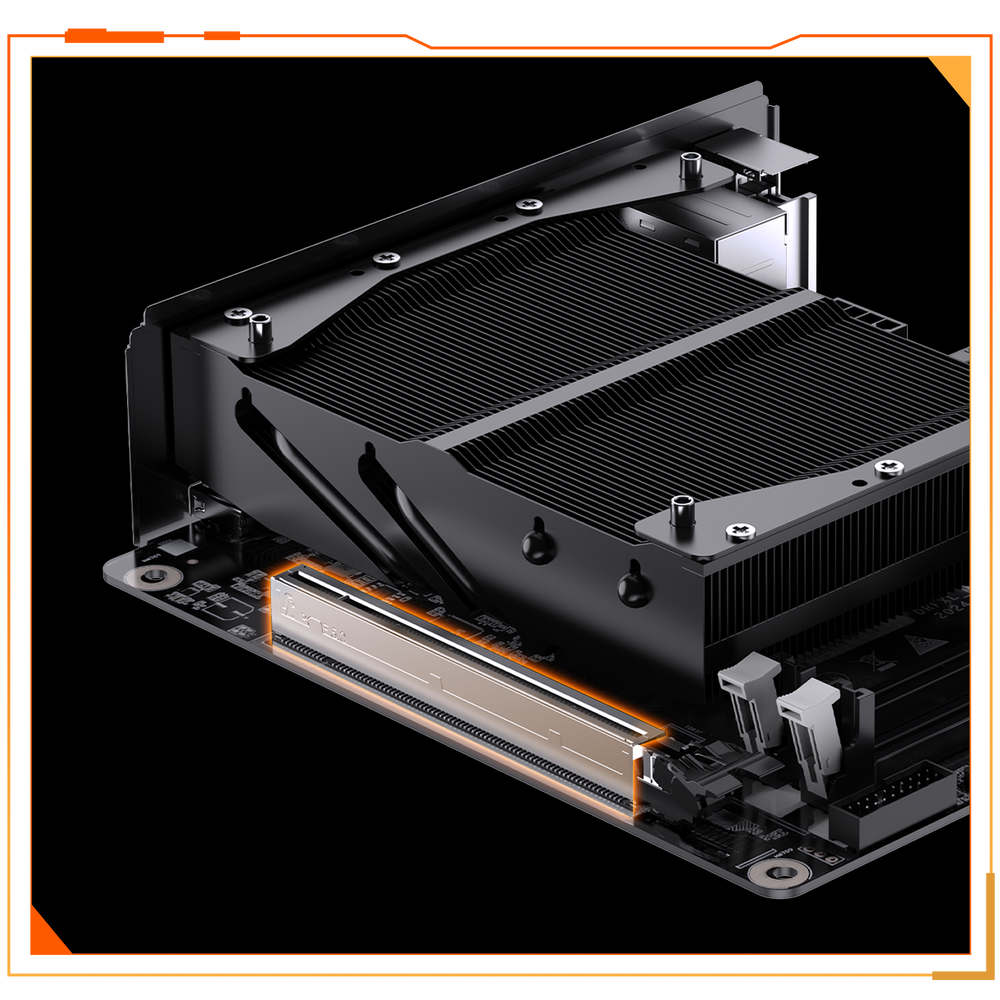

1x PCle5.0 x16
(Full-Speed Graphics Slot)

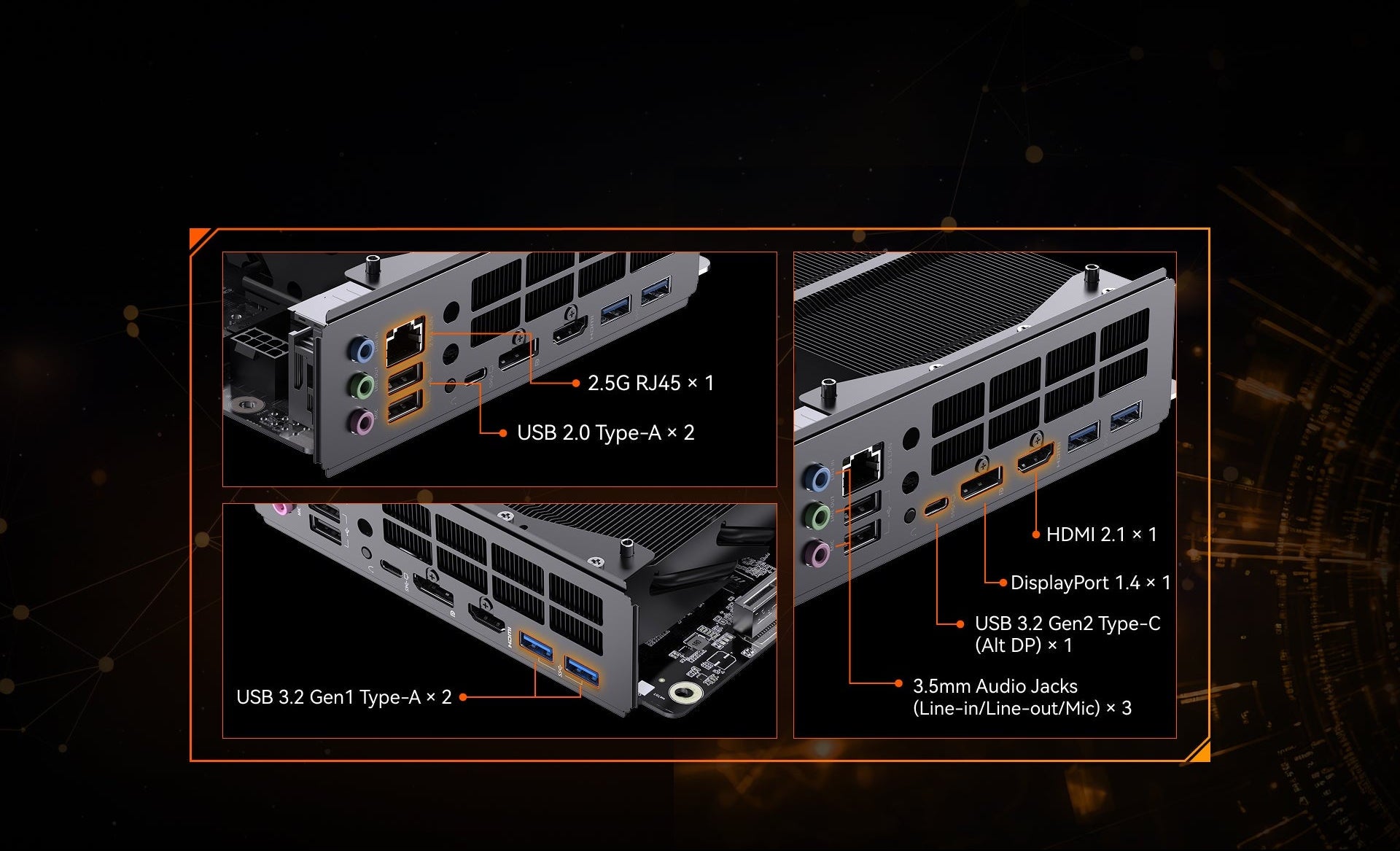

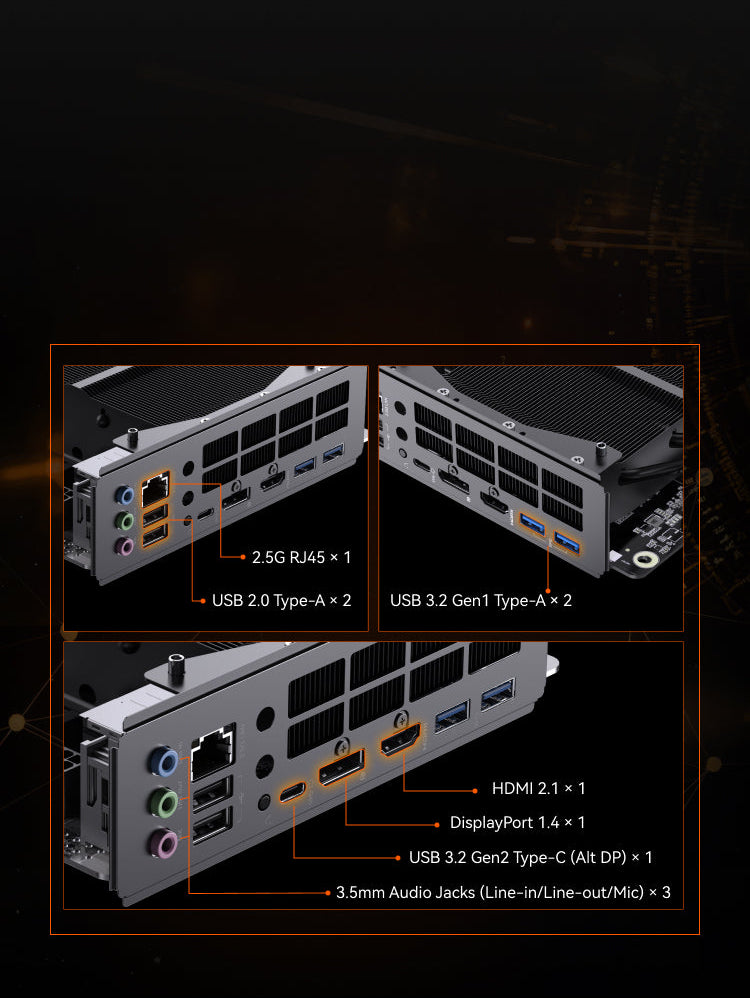

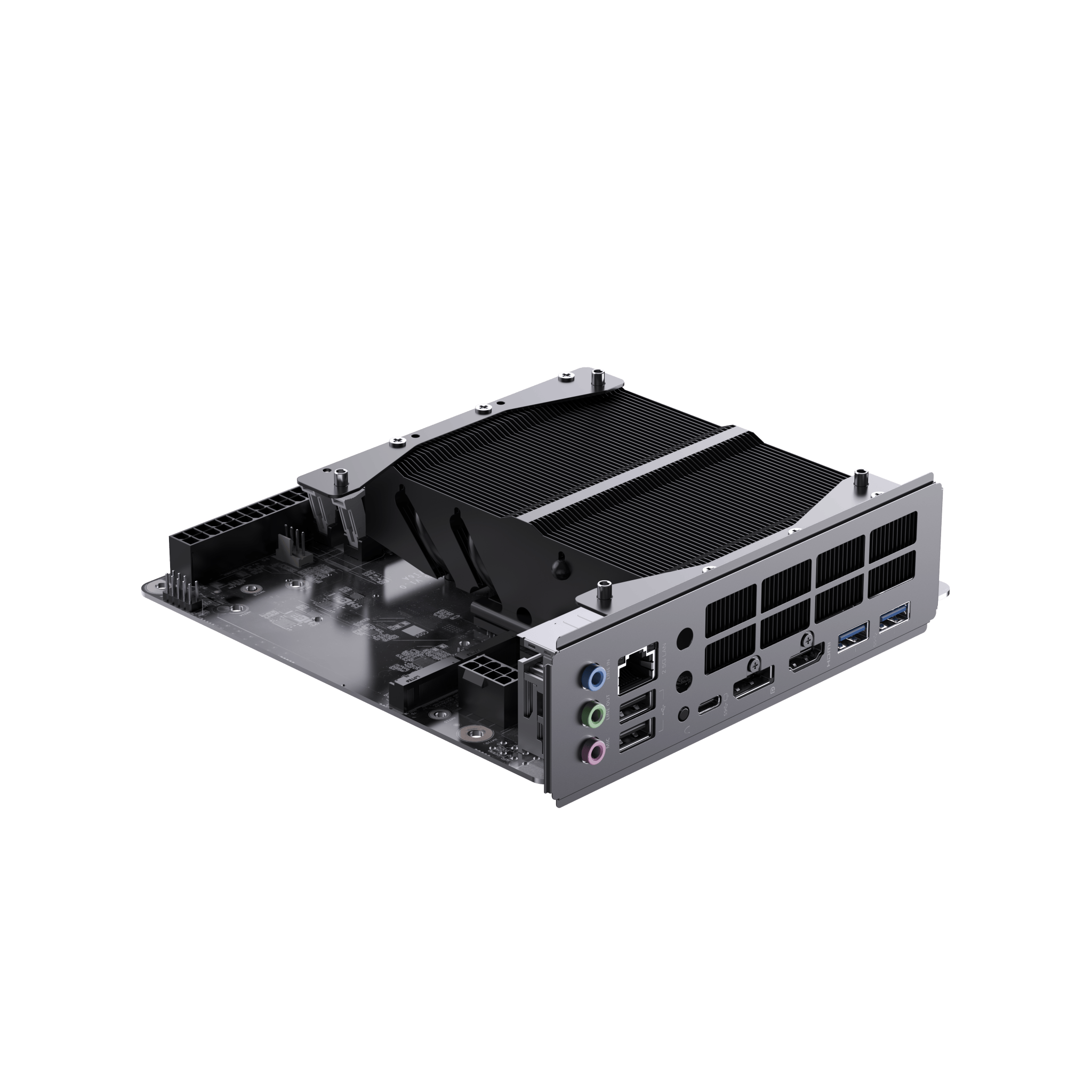

Rich Connectivity
Loaded with high-speed USB ports (including USB-C), dual video outputs (HDMI 2.1 & DP 1.4), a 2.5G Ethernet jack, and multi-channel audio
Expand Your View
Supports simultaneous triple-screen display output
Supports up to 8K@60Hz on a single screen
Power Starts Here
Revolutionize Your Creative Workflow
Ryzen 9 + Dedicated GPU: Smooth Creation for Design, Edit, Code
Alongside Gamers, Conquer Every World
Expand More. Install Faster

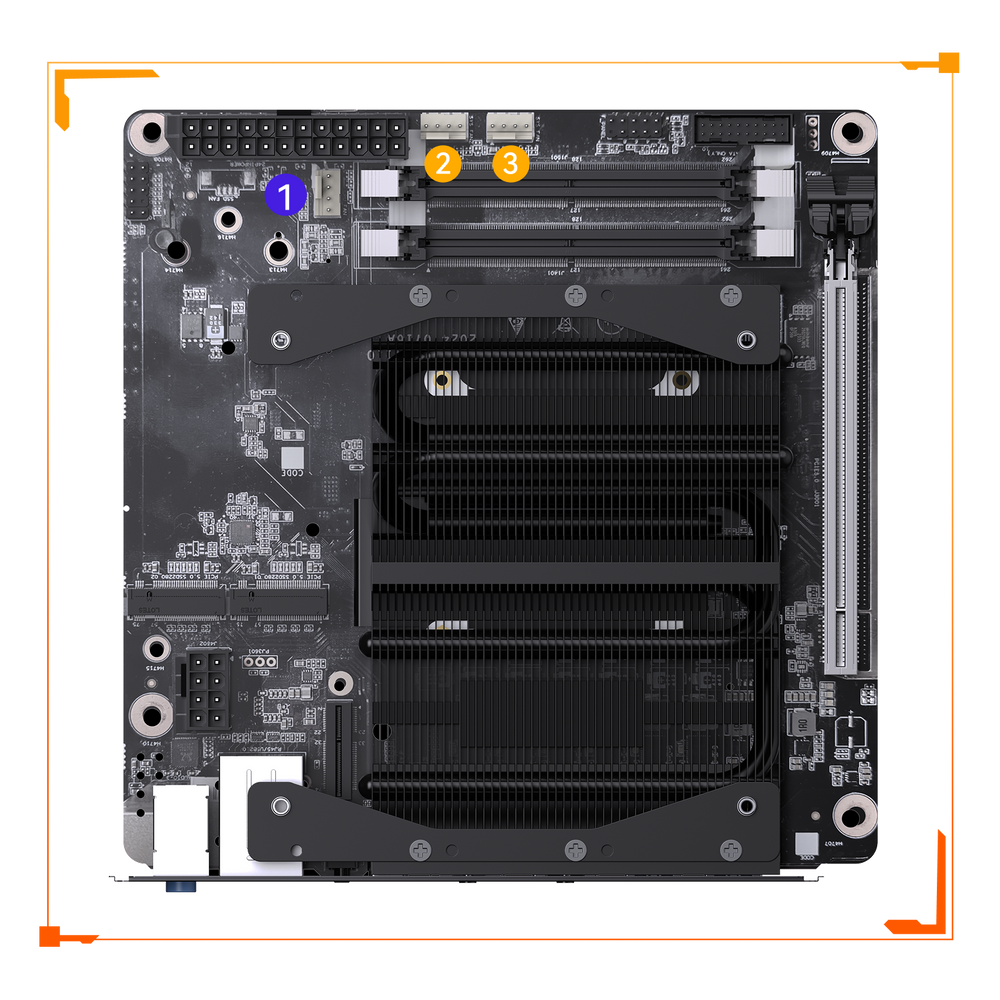

1：Case Fan
2：CPU Fan
3：CPU Fan
BIOS-Level
Fan Control

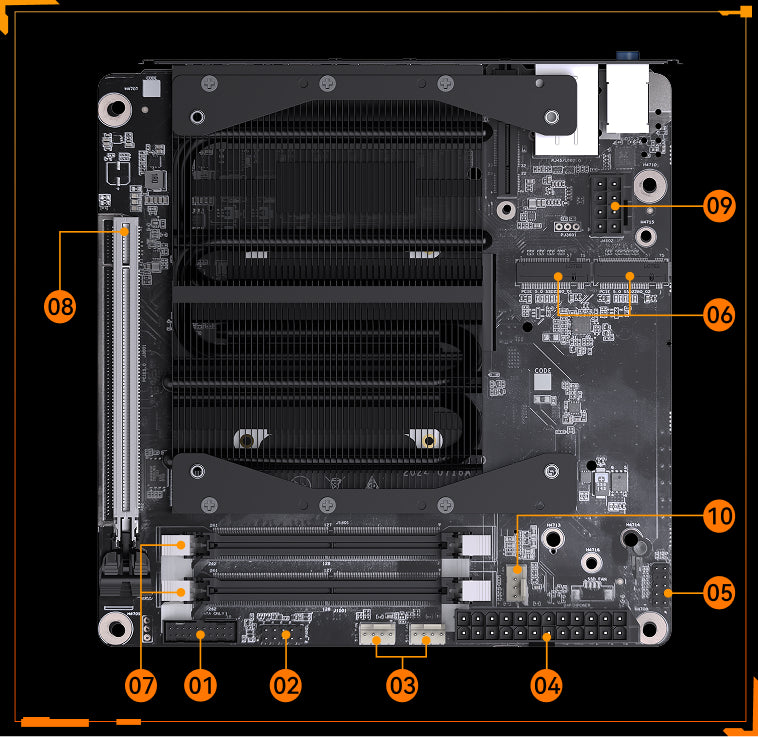

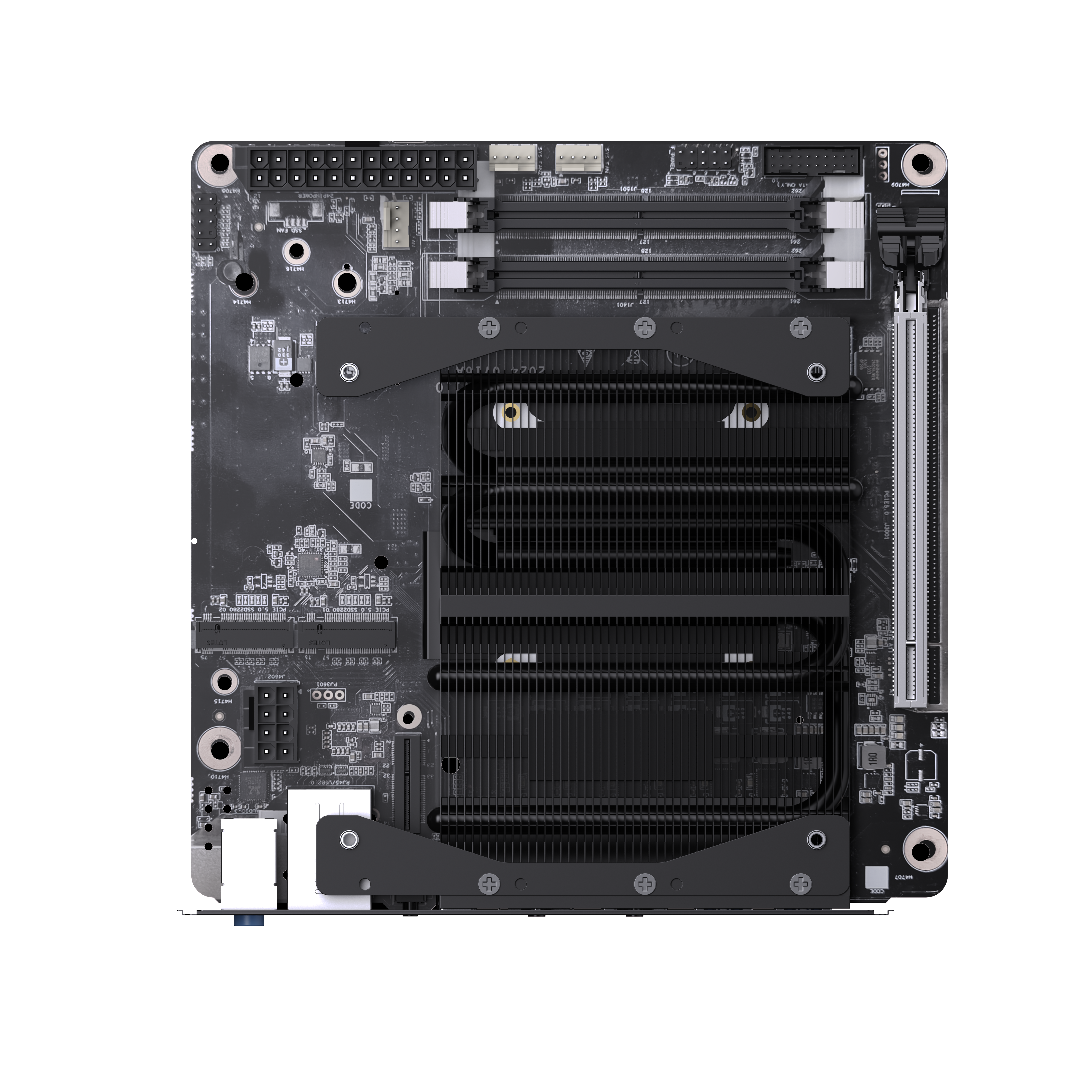

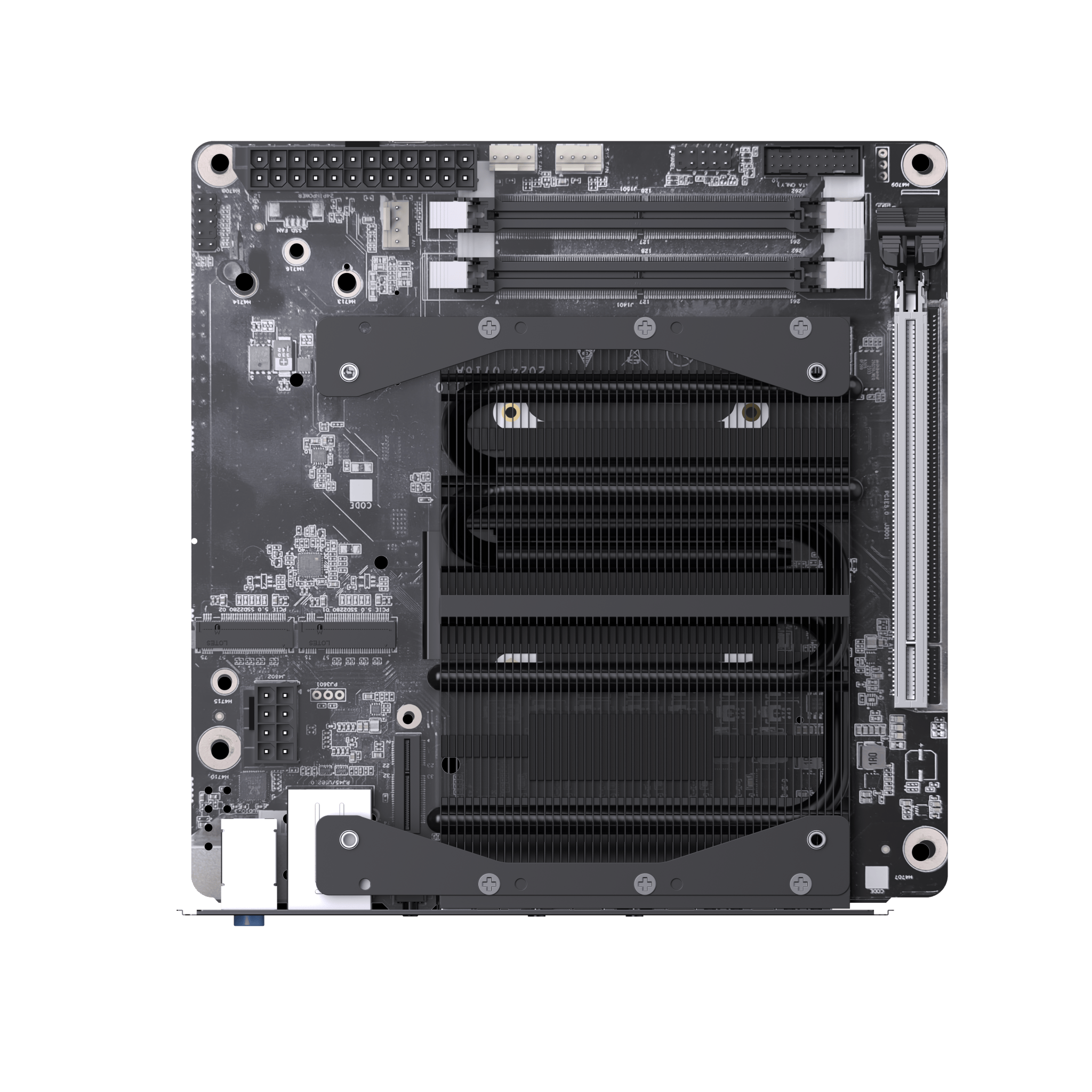

Motherboard Layout
01：USB 3.2 Gen1 header
02：System Panel header
03：4-pin SYS Fan header × 2
04：24-pin Main Power connector
05：Front Panel Audio header (F_AUDIO)

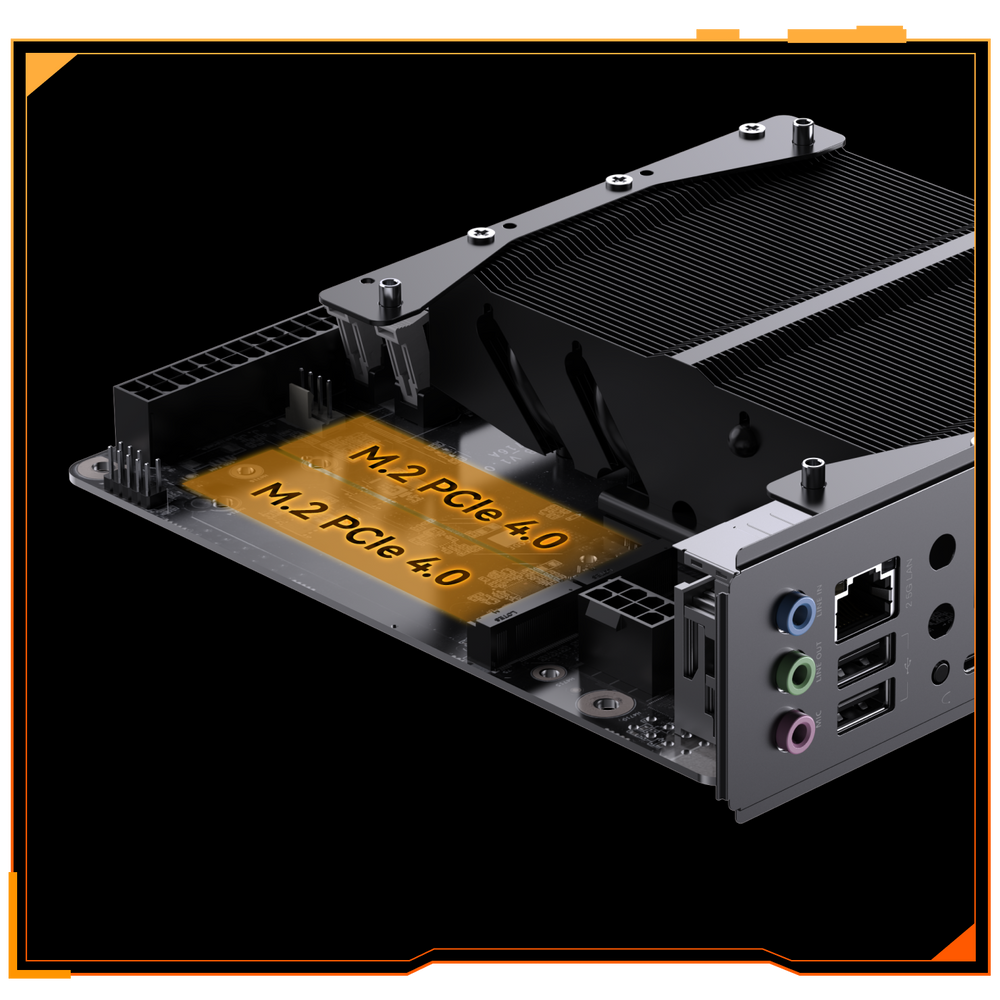

06：M.2 2280 PCIe 4.0 SSD Slots ×2
07：DDR5 SO-DIMM Slots × 2
08：PCIe 5.0 ×16 Slots
09：8-pin CPU Power connector
10：4-pin CPU Fan header
Packing List
Motherboard

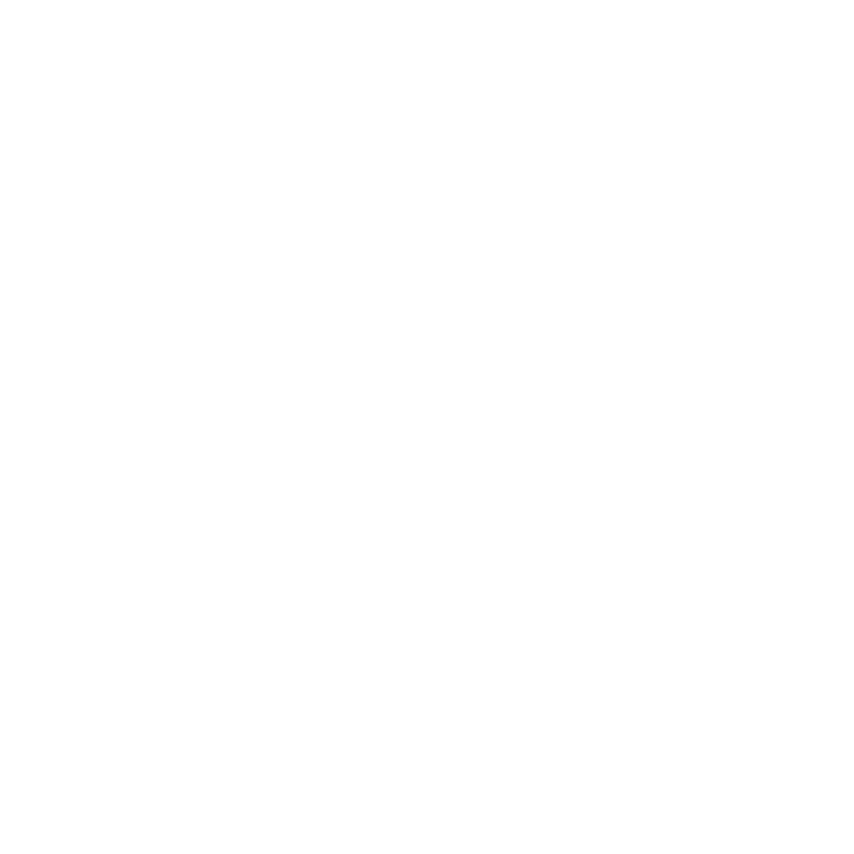

Mounting Screw Set
Instruction manual
BD895i SE Specifiction
Processor：AMD Ryzen™ 9 8945HX
Total Cores：16
Total Threads：32
Frequency：2.5 GHz
Max Turbo Frequency：5.4 GHz
TDP：100W, 120W Max Turbo
CPU Cooler height：37mm(12cm fan not included)
Graphics Cards：AMD Radeon™ 610M
1 × PCIe 5.0 ×16 Connector
Memory Type：DDR5 (SO-DIMM х 2)
Max Speed Support：5200MHz
Max Capacity Support：96GB
Storage Type：2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4)
Optional SKU SSD Capacity：N/A
M.2 2230 E-Key(PCIe Only)
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin CPU Fan header
2 x 4-pin SYS Fan header
1 × System Panel header
1 × Front Panel Audio header (F_AUDIO)
1 × USB 3.2 Gen1 header
HDMI™ 2.1 FRL x 1 (Up to 8K@60Hz/4K@120Hz)
DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
1 × USB-C (Up to 8K@60Hz/4K@120Hz)

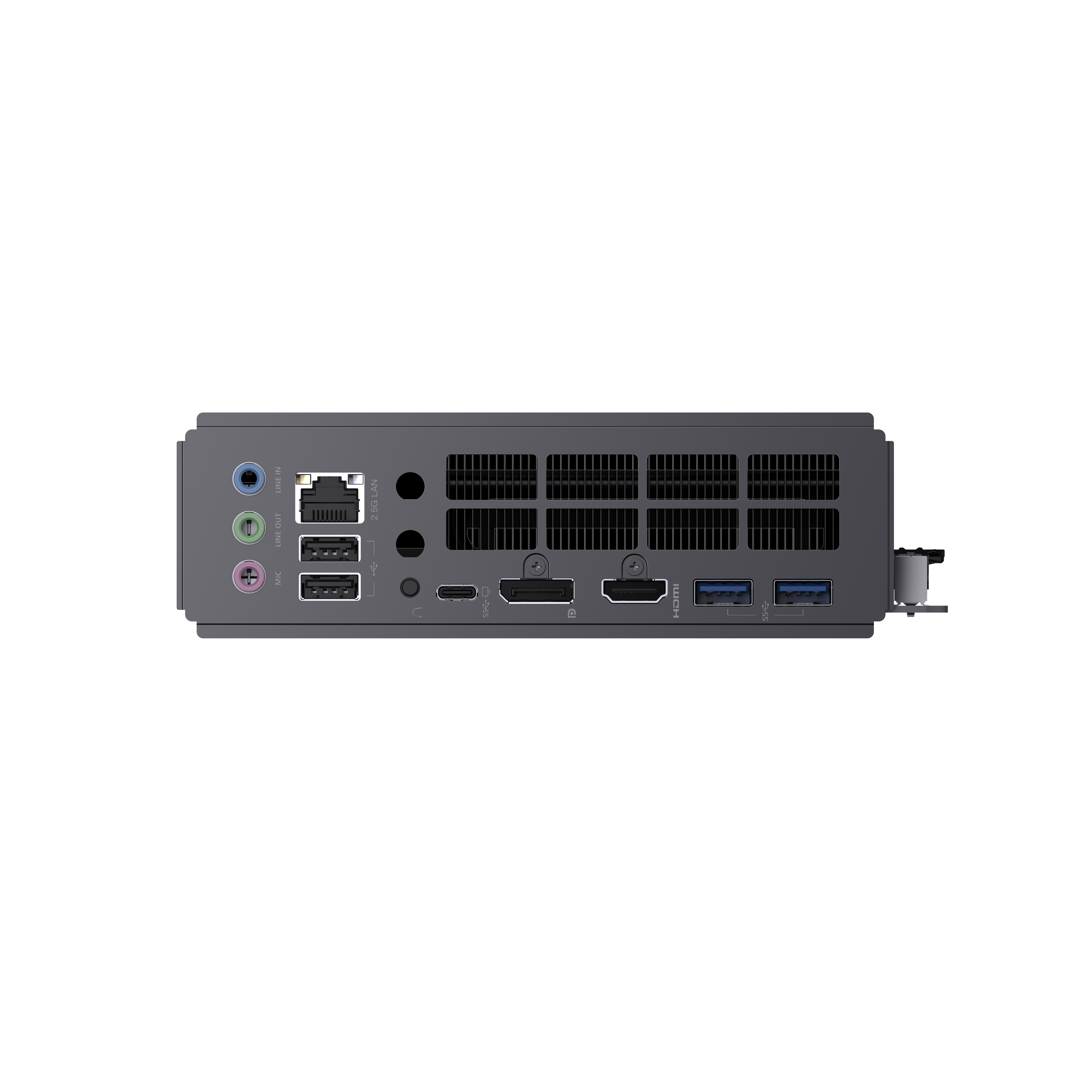

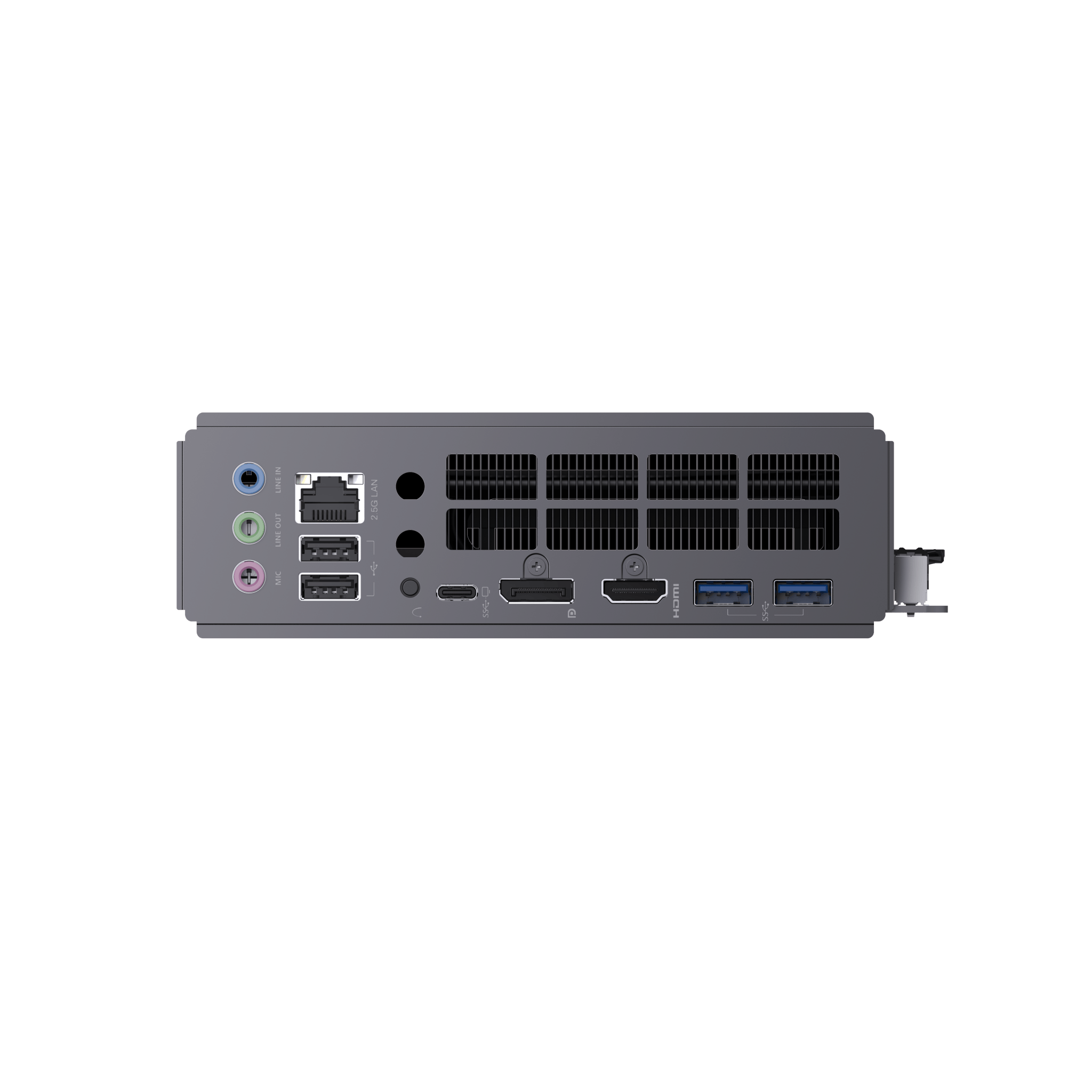

HDMI™ ×1
Line Out ×1
Line in ×1 Mic ×1

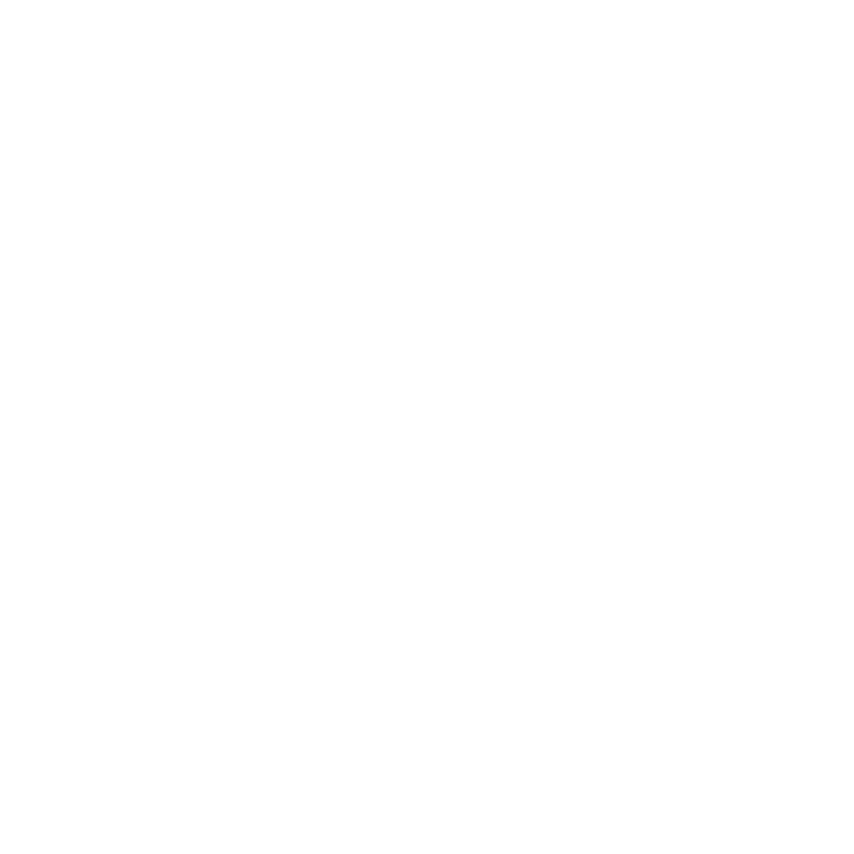

2.5Gigabit LAN(RJ45) ×1
USB Type A(USB2.0) ×2
USB Type A(USB3.2 Gen1) ×2
USB Type C (USB3.2 Gen2)(Alt DP) ×1
HDMI2.1 ×1
DP1.4 ×1
Line in ×1
Line Out ×1
Mic ×1
CLR COMS ×1
ATX Power(>200W)
Windows 11
170х170х1.6mm(LWH)
