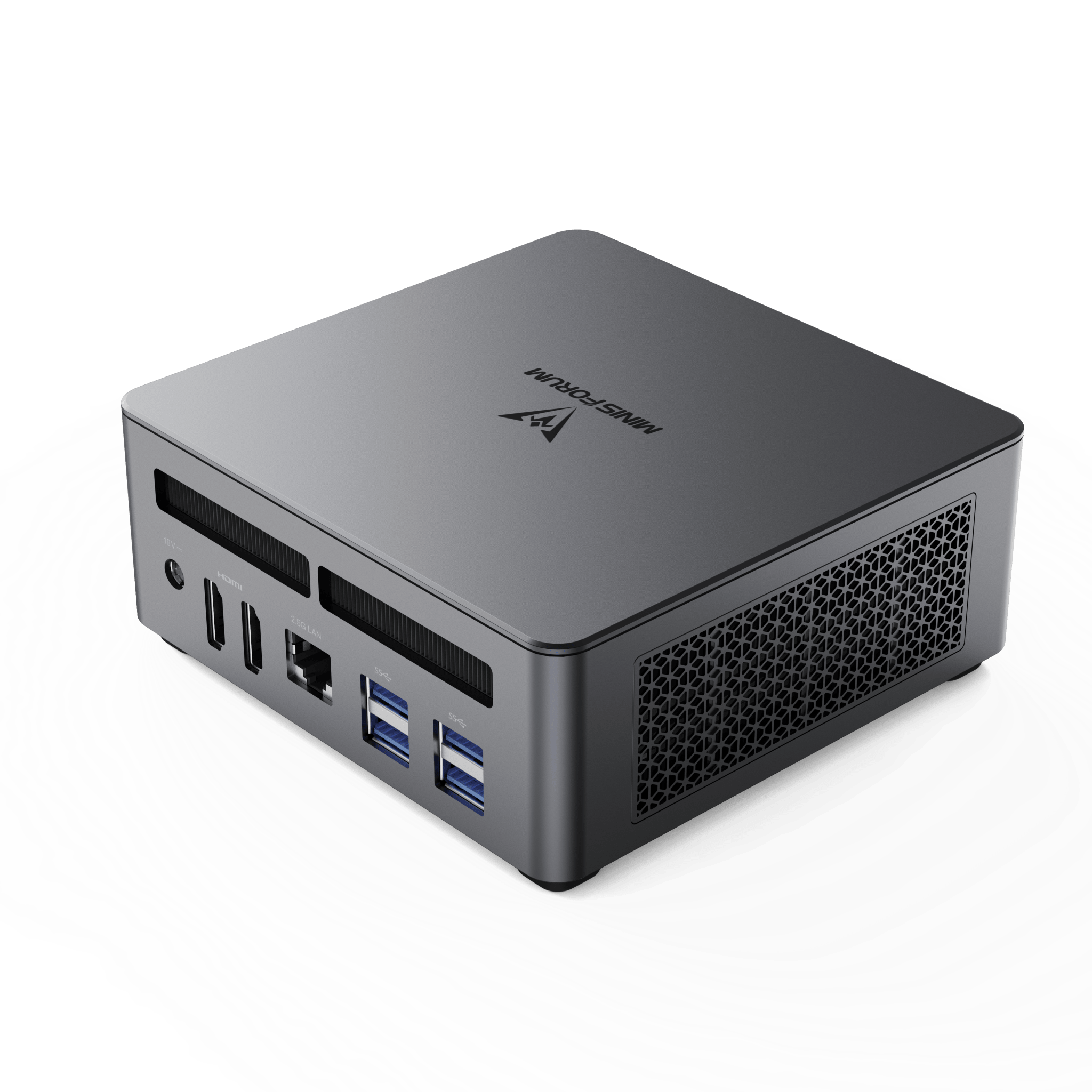

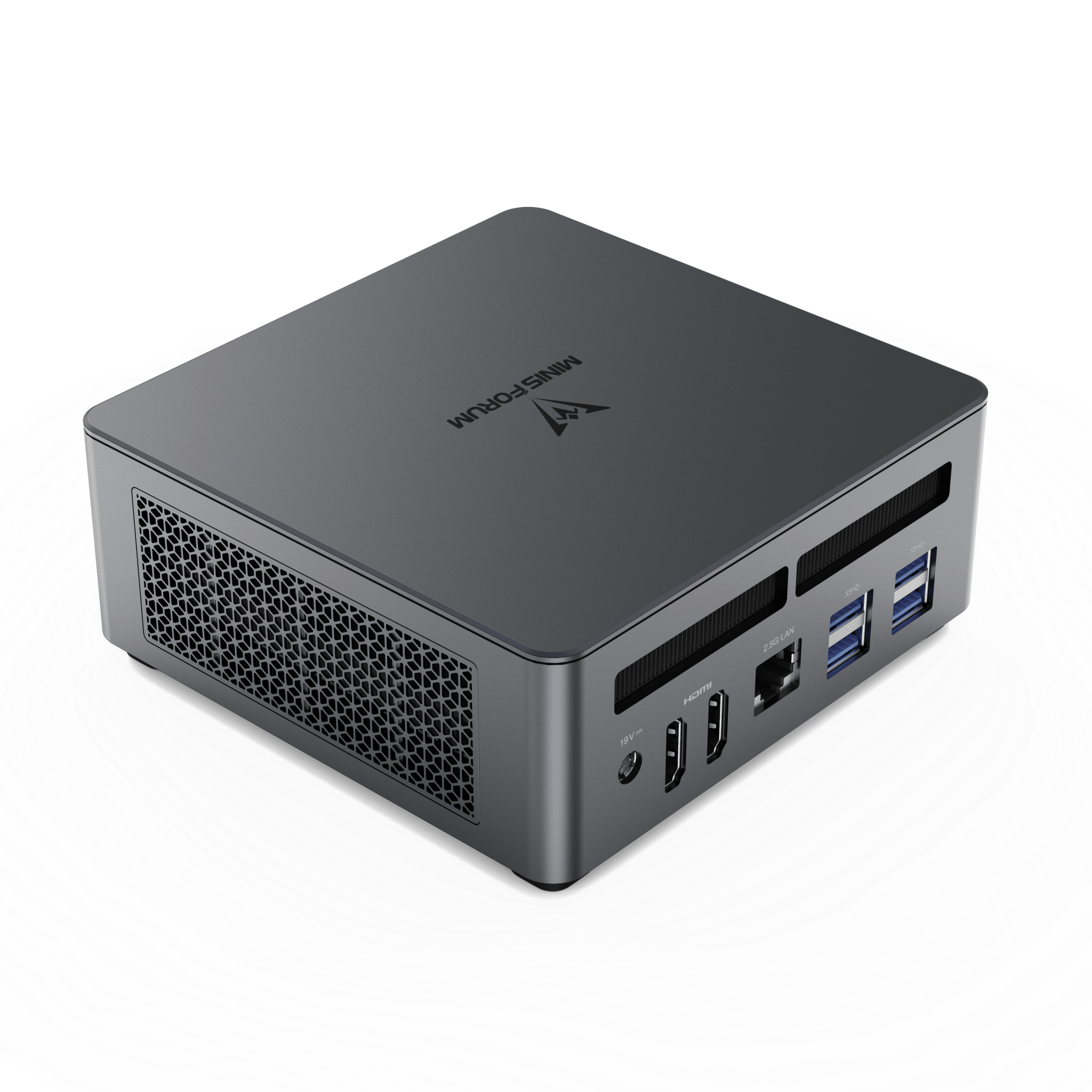

Minisforum UM790 Pro-US

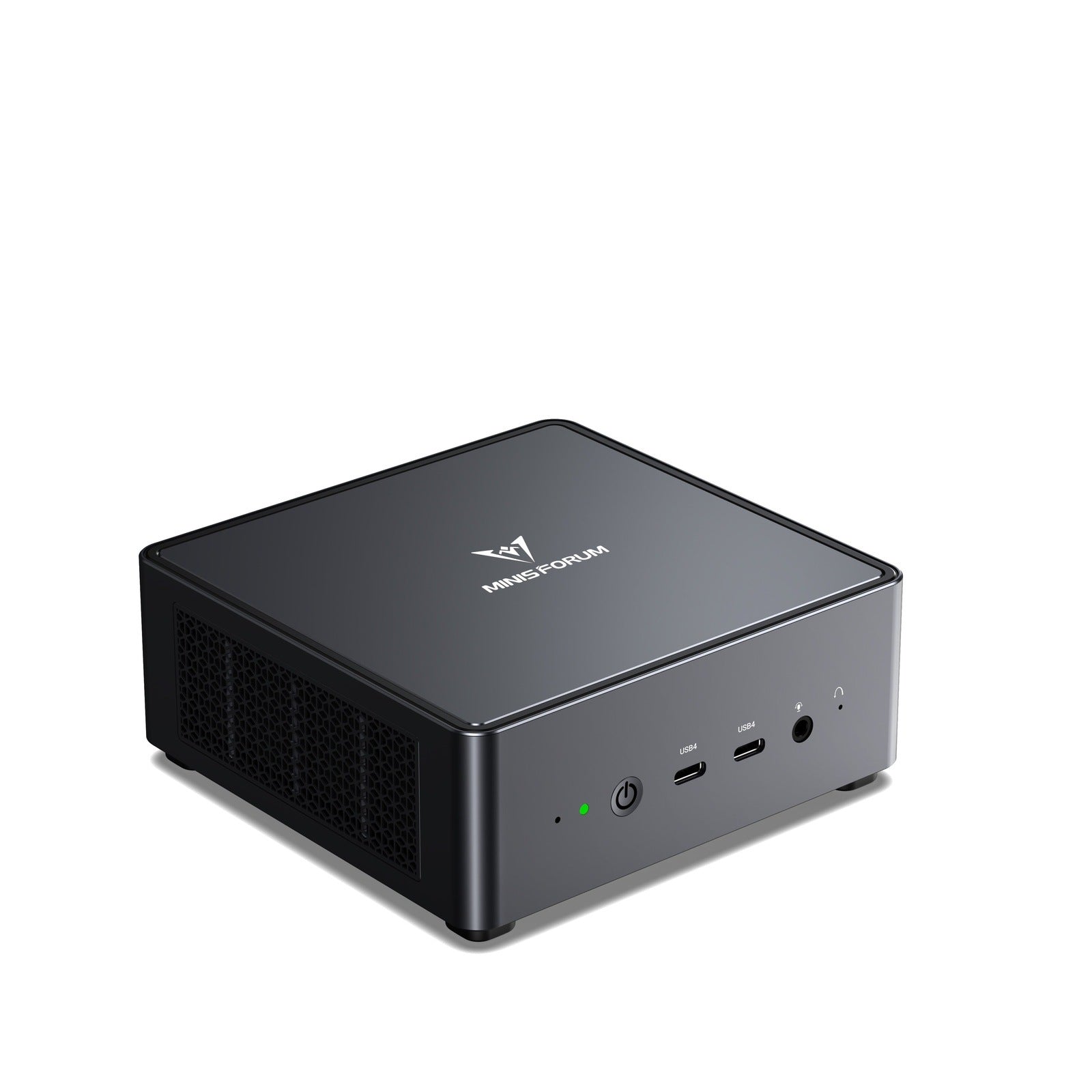

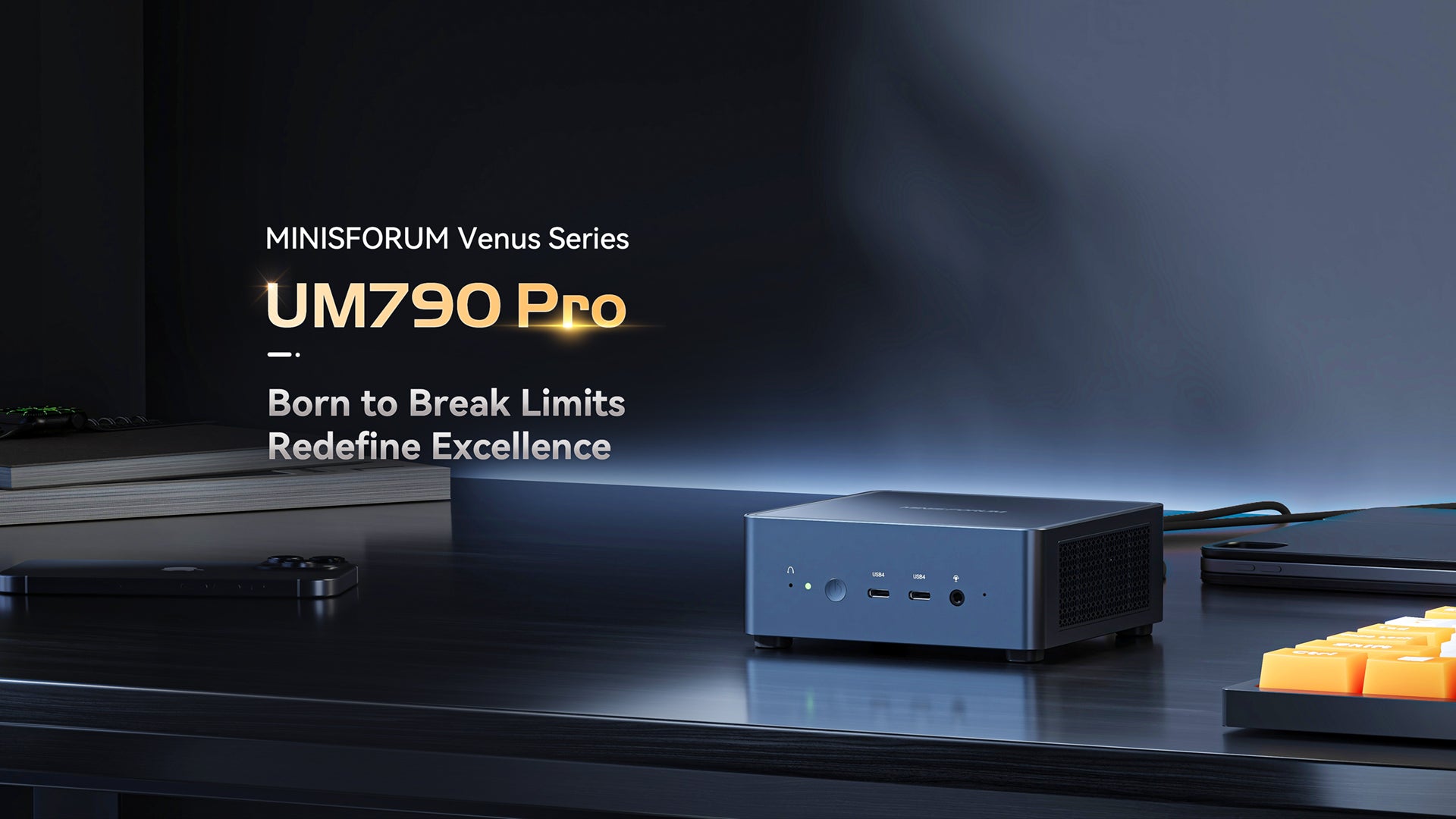

UM790 Pro
Use coupon code Minisforum to save $30 on UM790 Pro

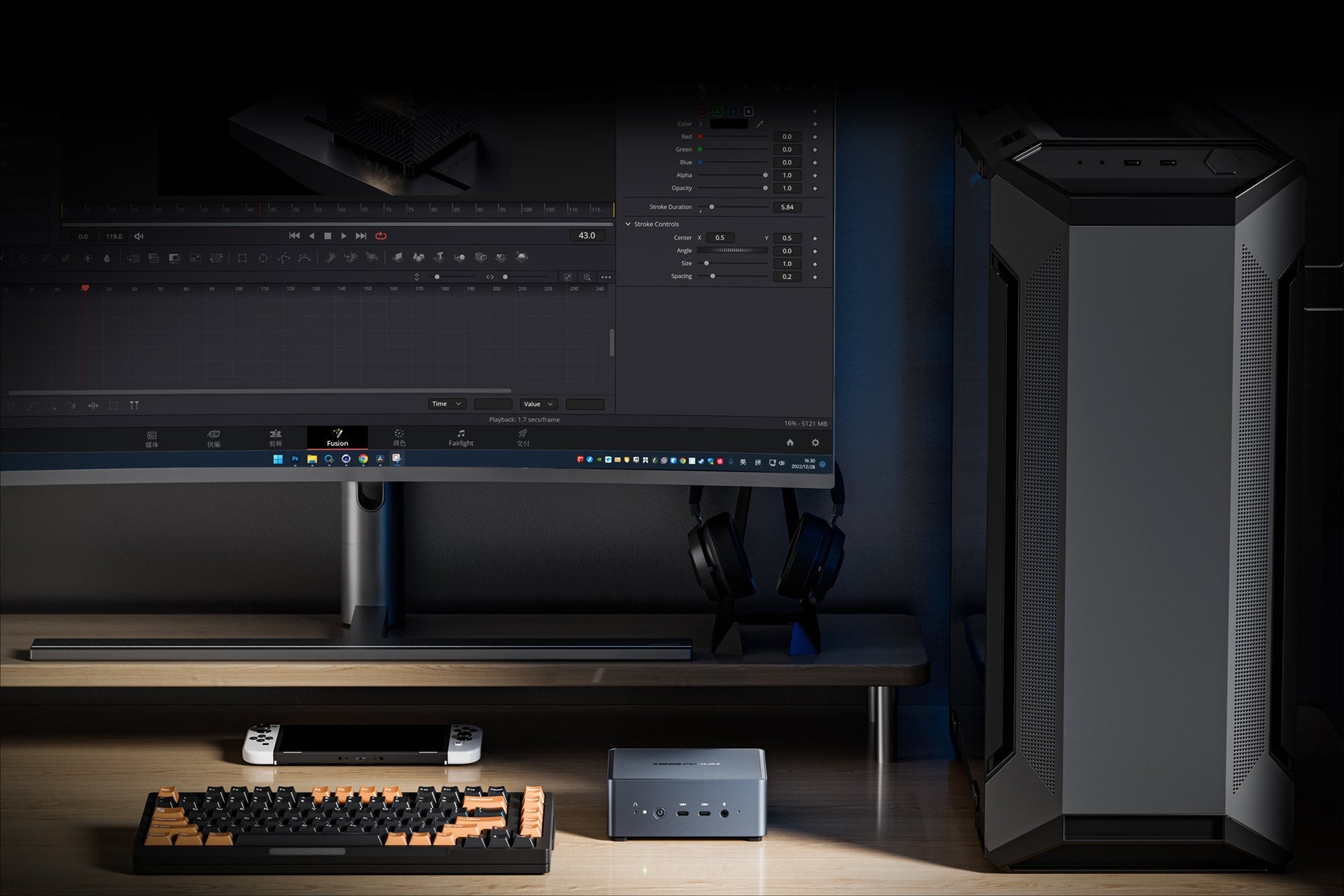

Free up Space
0.8L in Size
It frees up 40 times more space compared to a desktop computer.

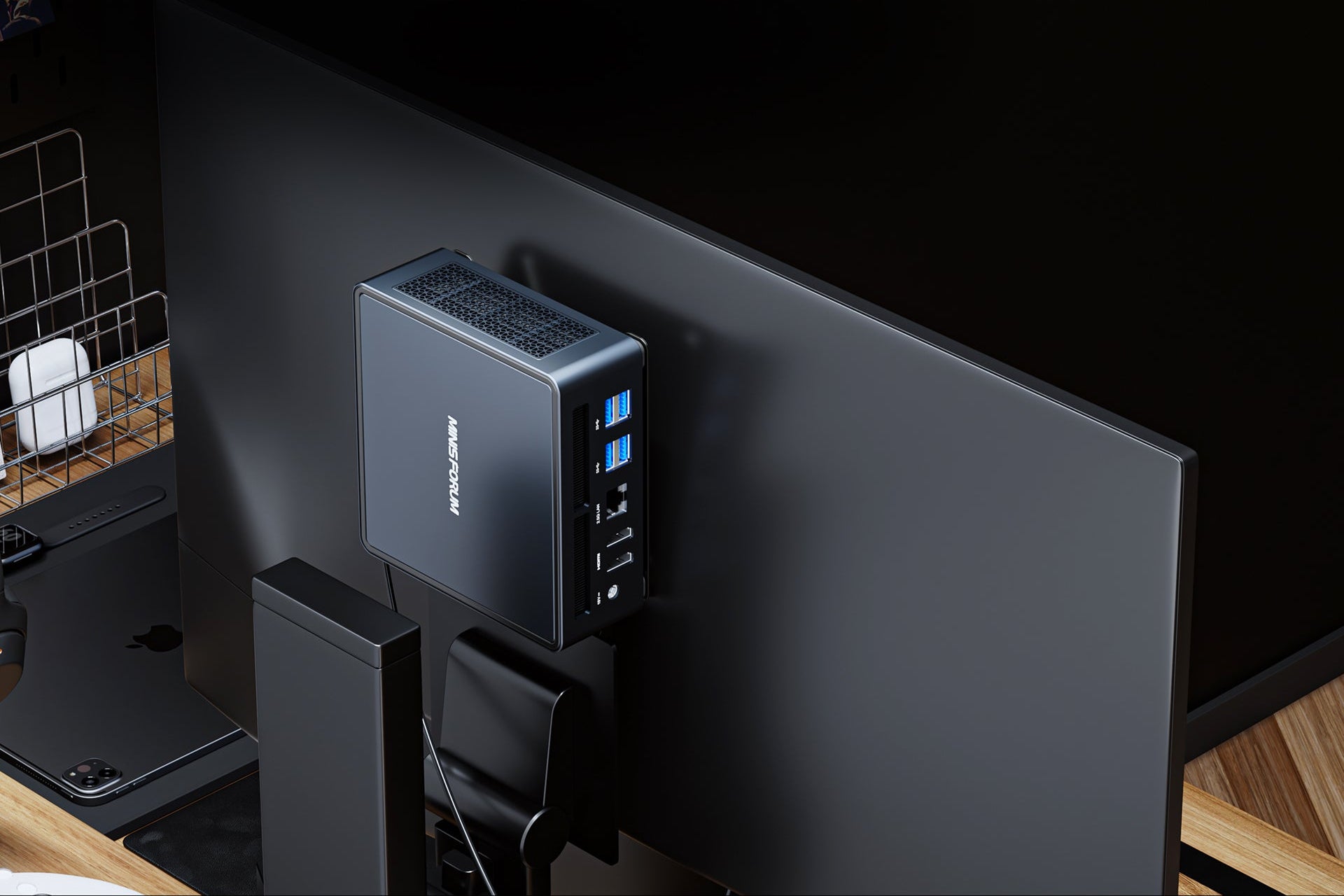

Freestanding and Support Mounting for Monitors
Support wall mounting and can be placed behind a monitor/TV to save desktop space.

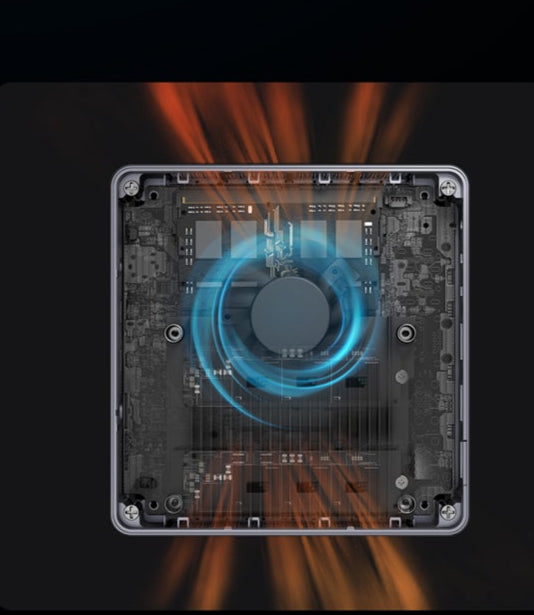

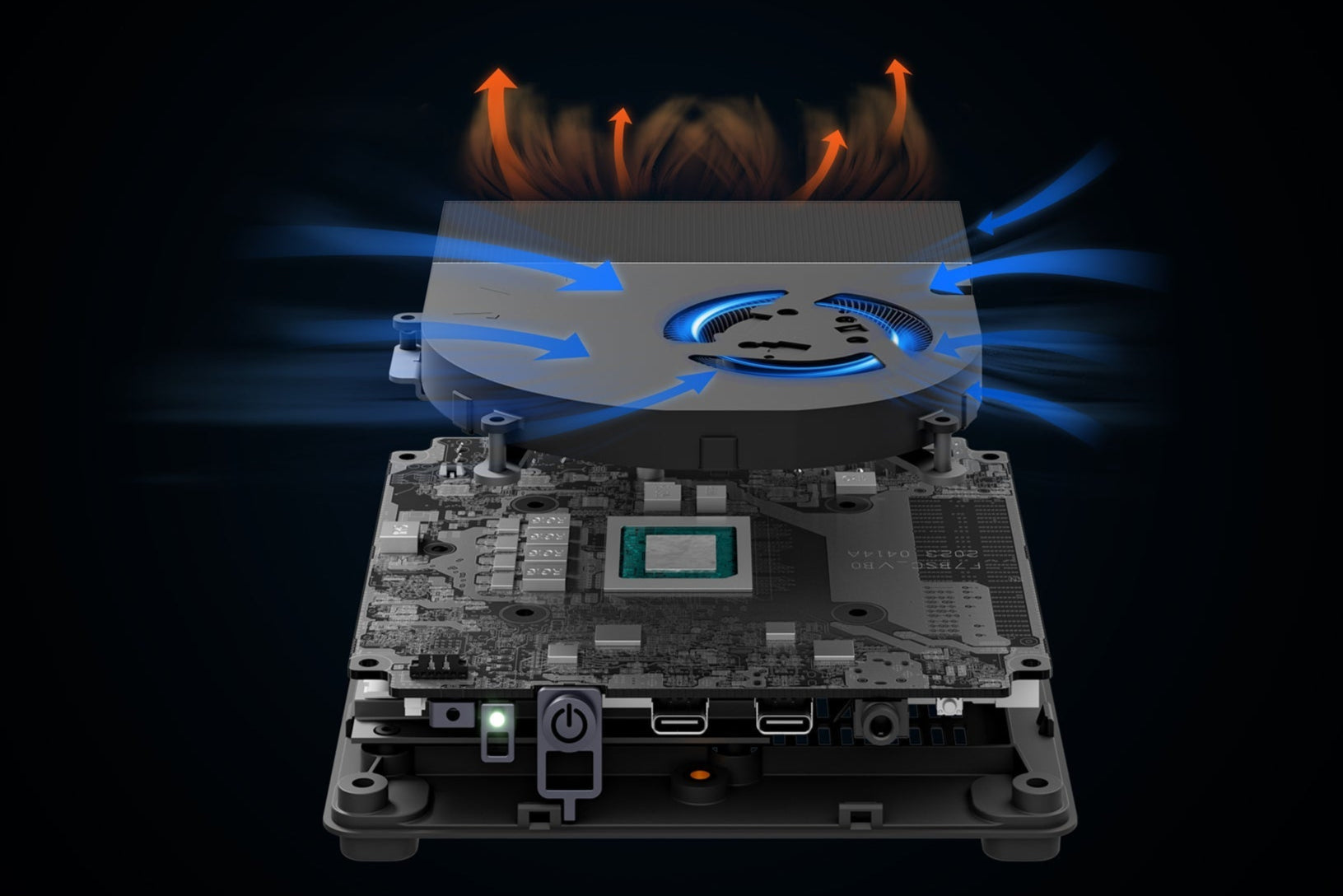

Cold Wave 2.0
The UM790 Pro adopts an innovative thermal system with liquid metal and active cooling for memory and SSD. The Cold Wave 2.0 offers better thermal performance under lower noise level; therefore, the UM790 Pro is able to leverage its processor, memory and SSD, and deliver amazing performance.
Large heat sinks and slient fans provide long-lasting cooling and stable operation
Large heat sinks and slient fans provide long-lasting cooling and stable operation
Unleash Space

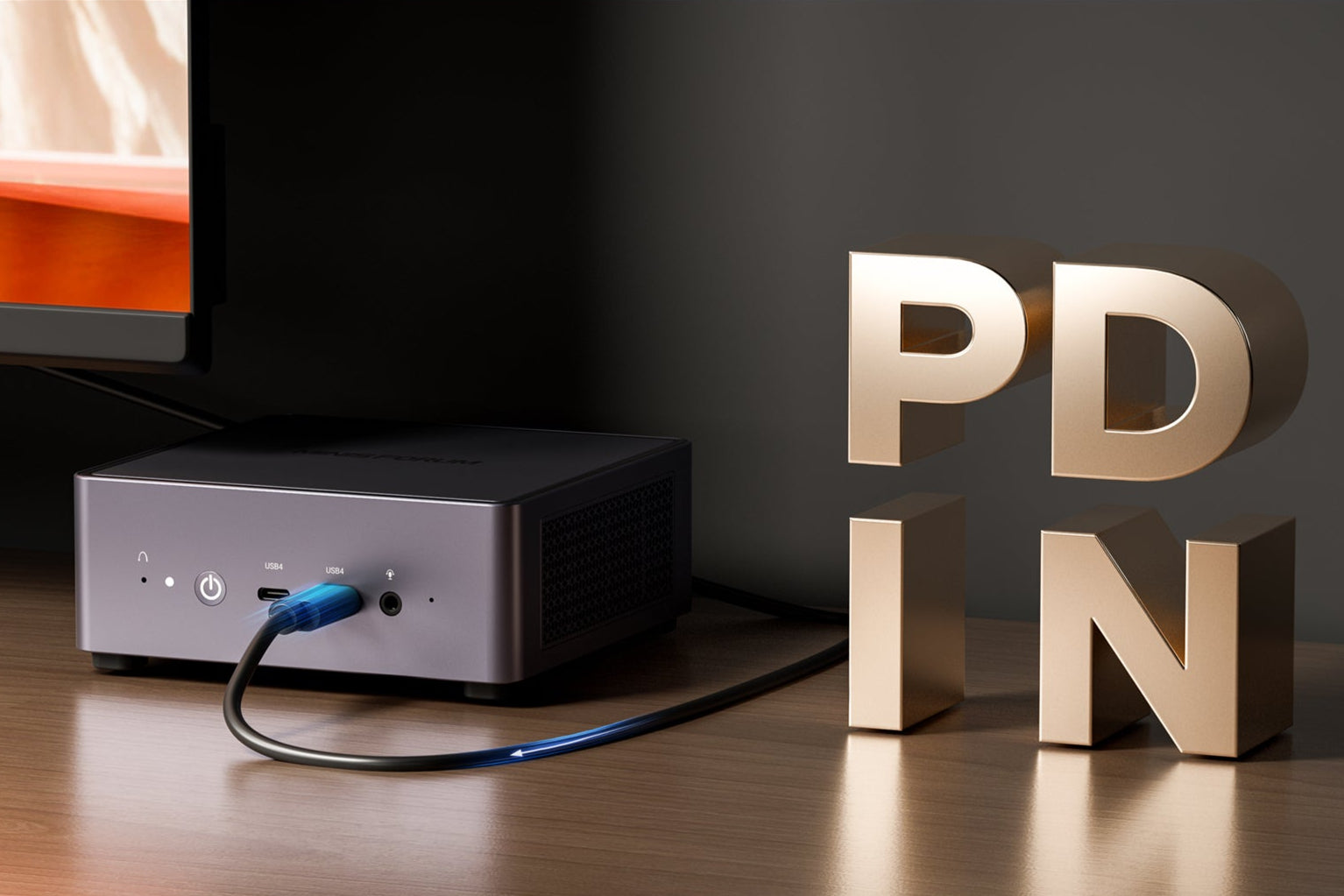

Support Alt Mode
Power Delivery, DisplayPort, Data Transfer

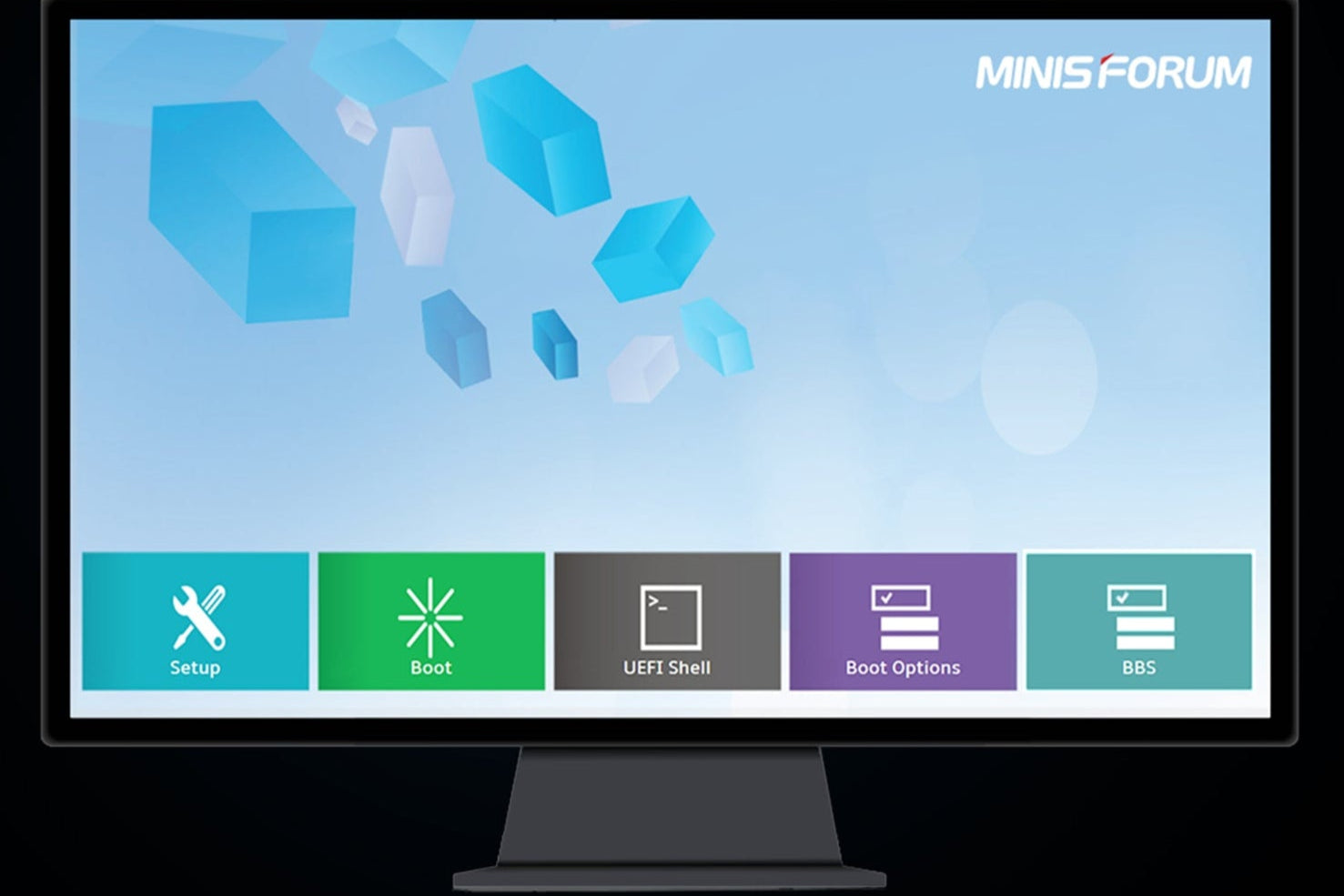

Graphical BIOS
Leading, Intuitive and User-friendly
Compared to the traditional BIOS, the graphical BIOS features a more user-friendly configuration interface. It also offers more comprehensive options, and more secure configuration management.

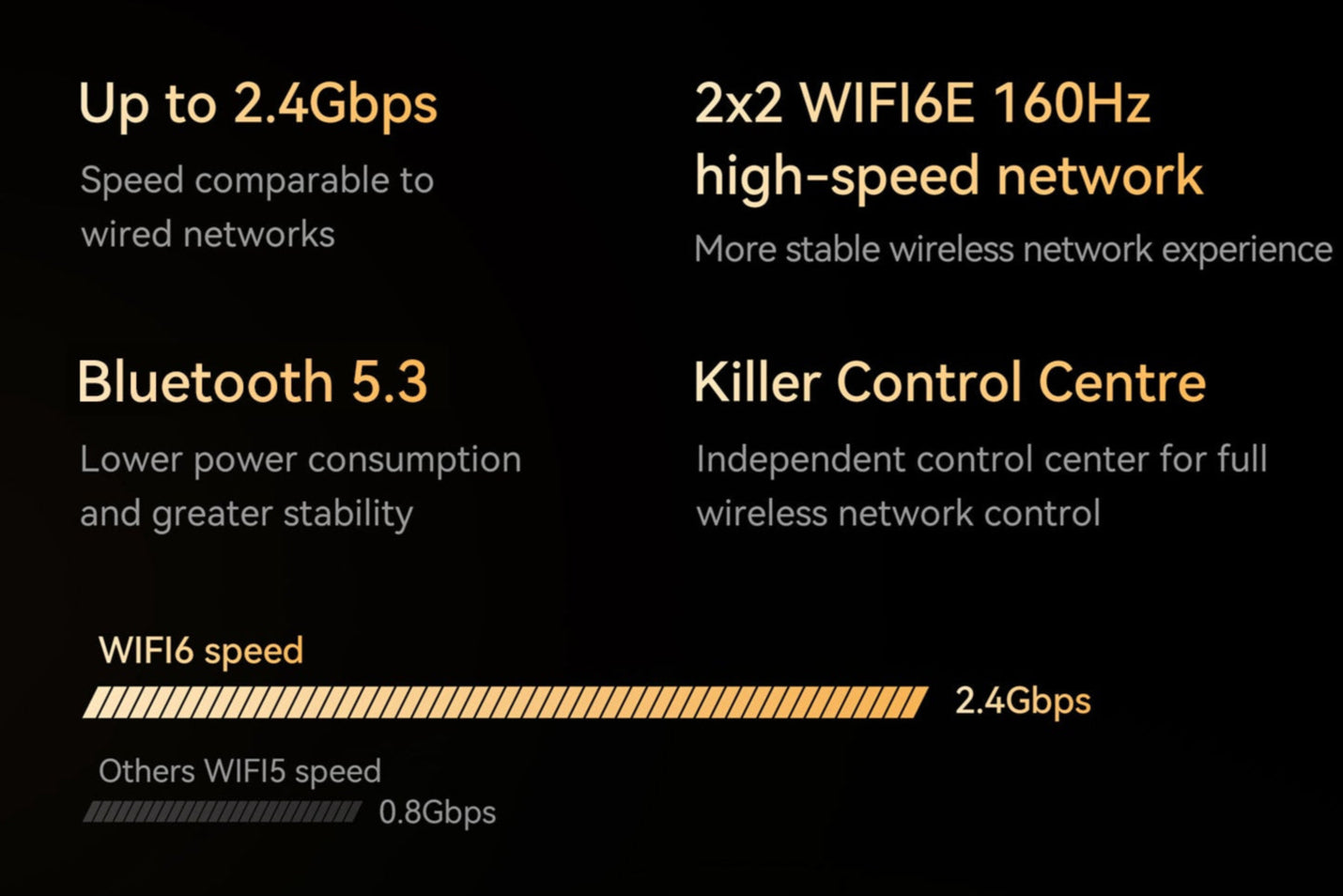

Intel® Killer™ AX1675 Wi-Fi 6E Network Card
Fast Internet Speeds
Three Times Faster than Traditional Network Cards
It supports Wi-Fi 6E 2*2 160MHz with a maximum speed up to 2.4Gbps, and prevents lactency and dropouts.

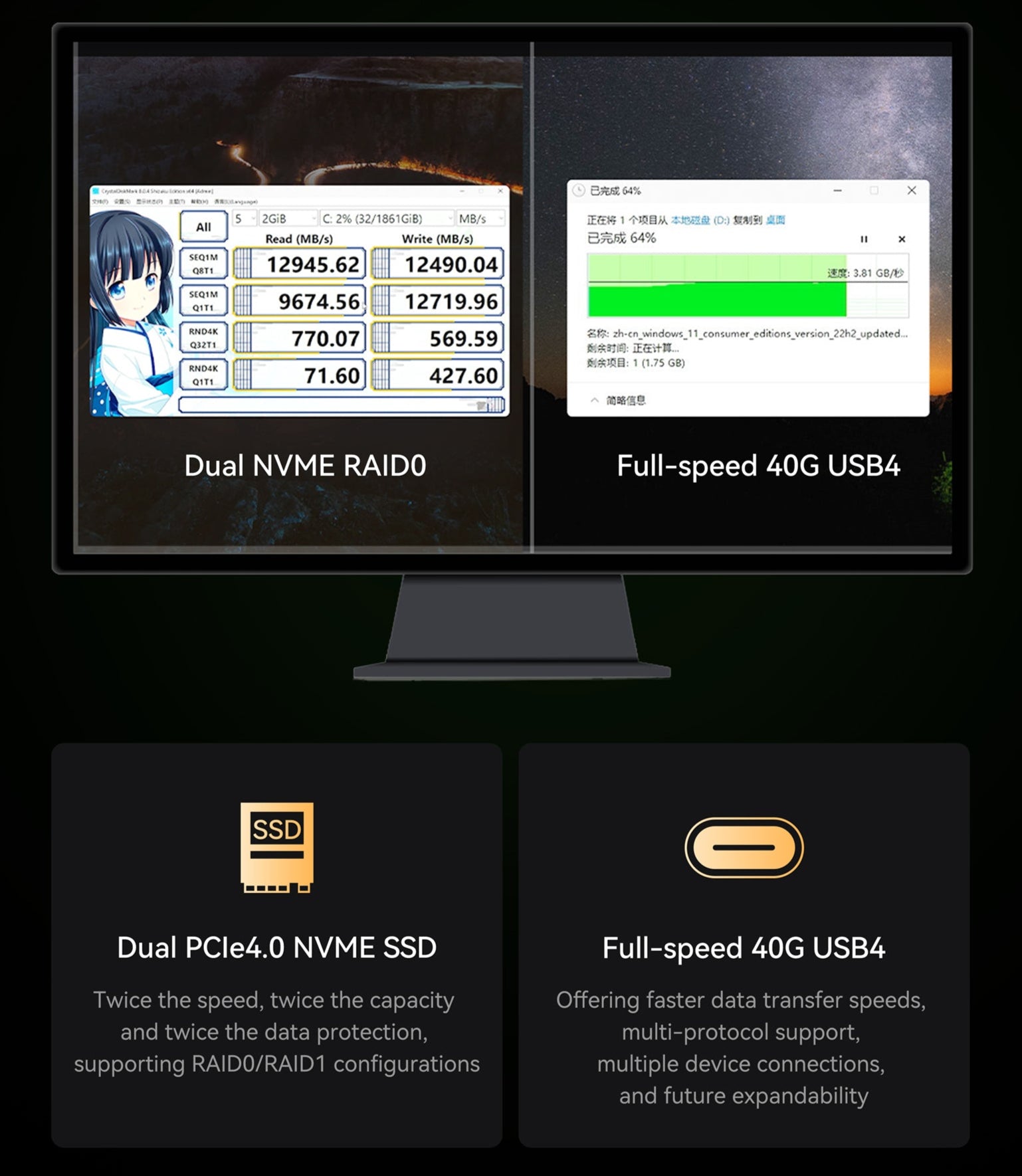

Fast Transfer Speeds
Dual NVMe PCIe4.0 & Dual 40Gbps USB4

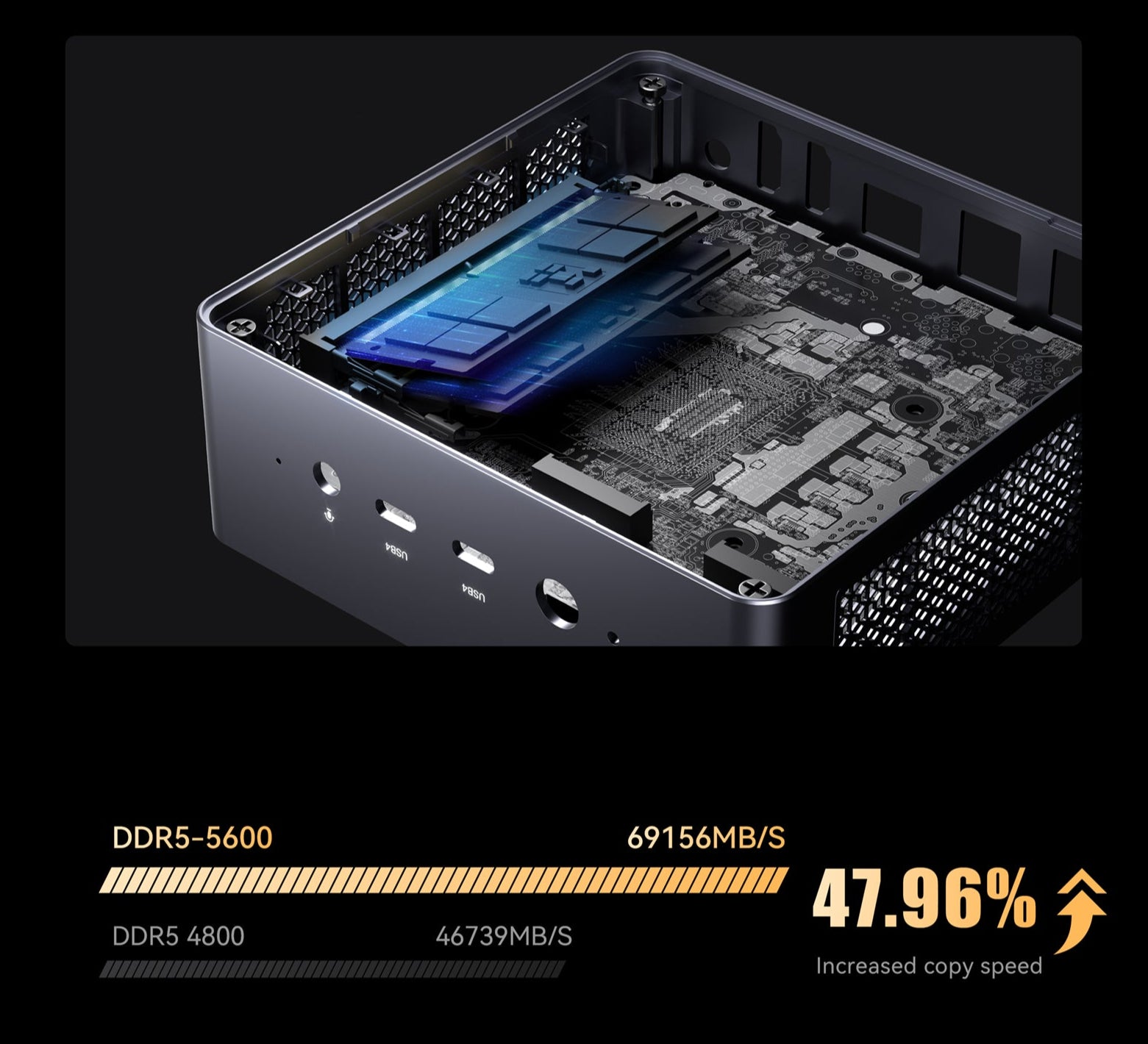

Fast Memory Speeds
Supports up to 5600MHz
Shine Bright

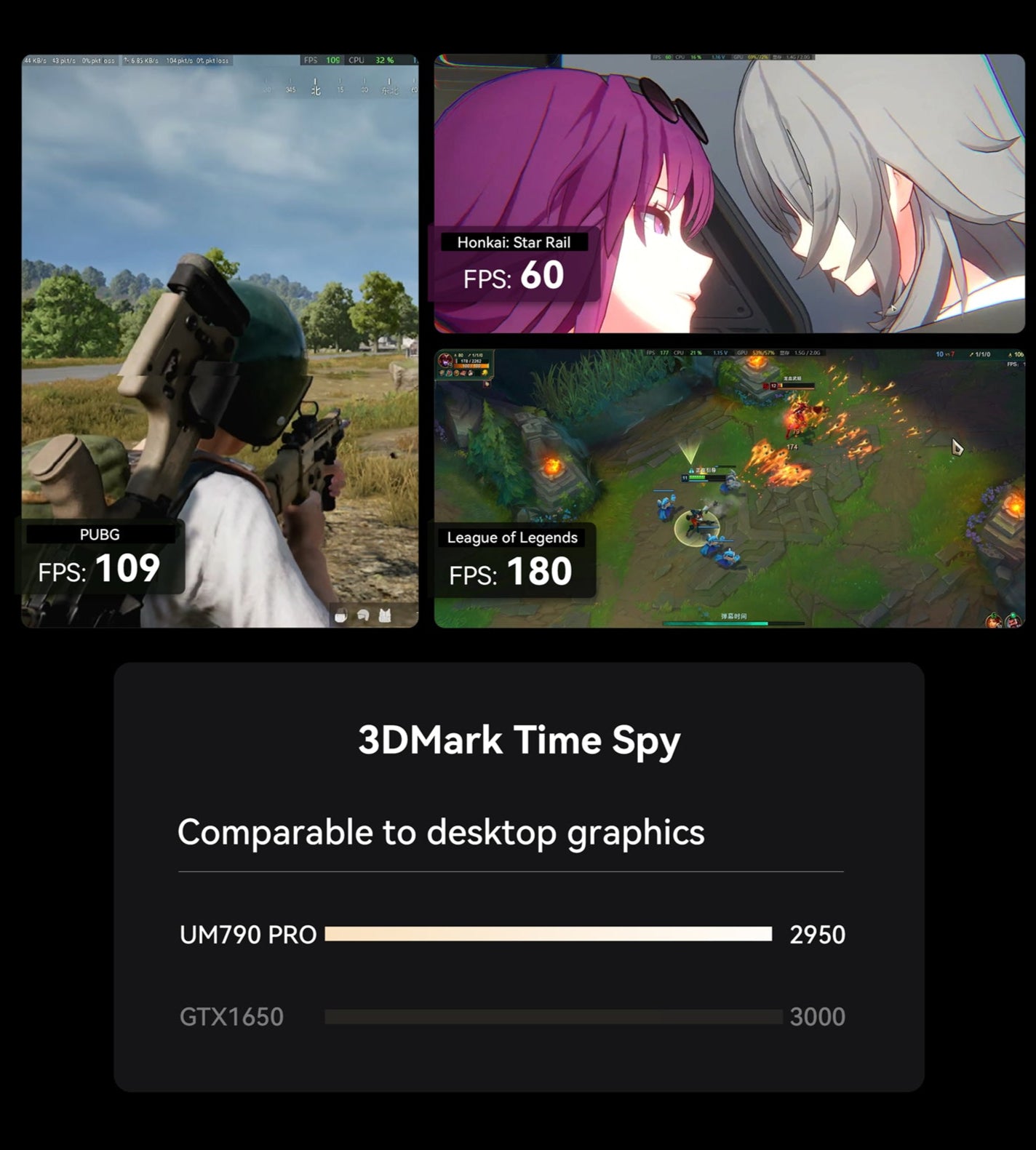

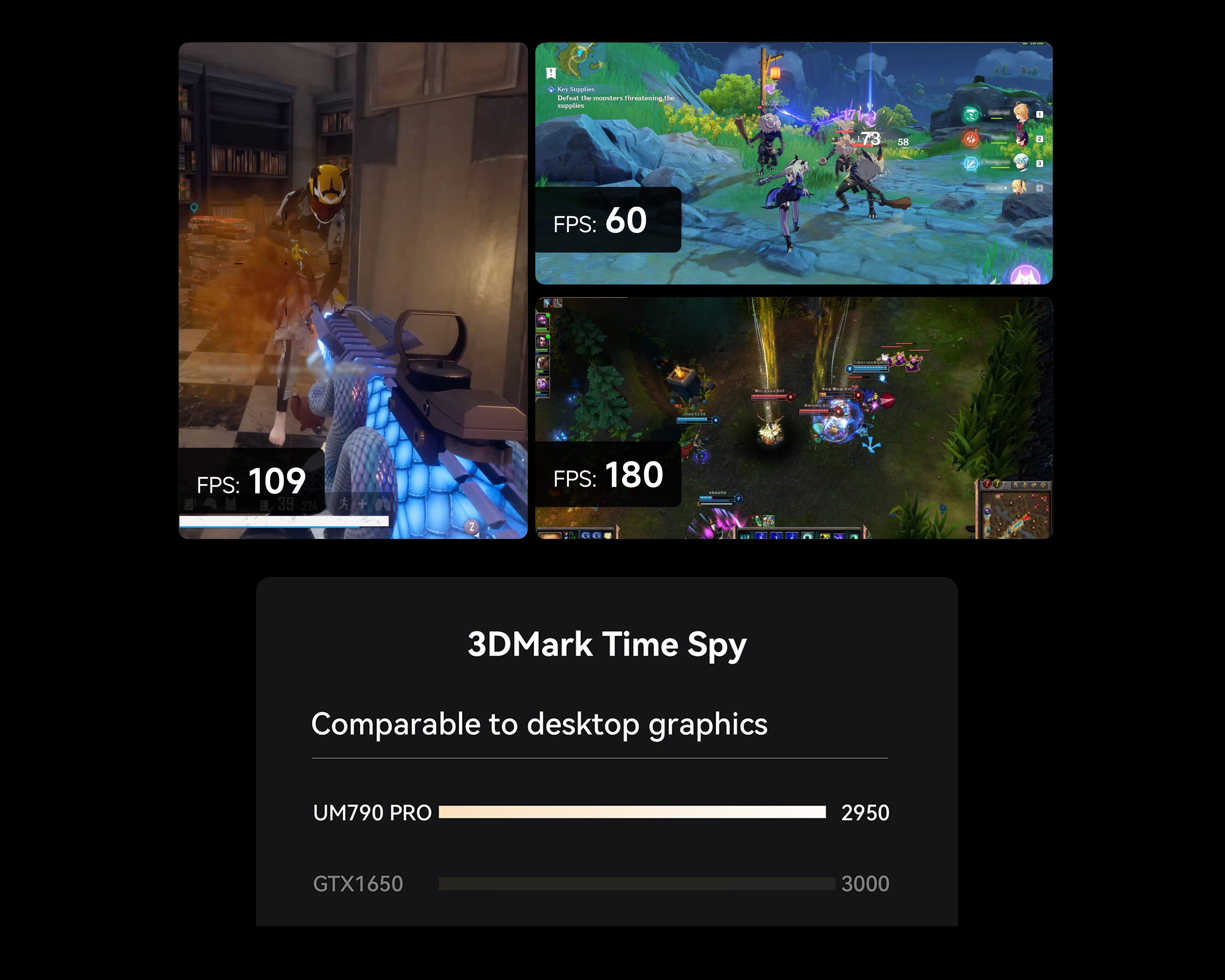

Smooth Gaming Experience
The AMD Radeon™ 780M delivers competitive graphics performance even compared to desktop GPU.

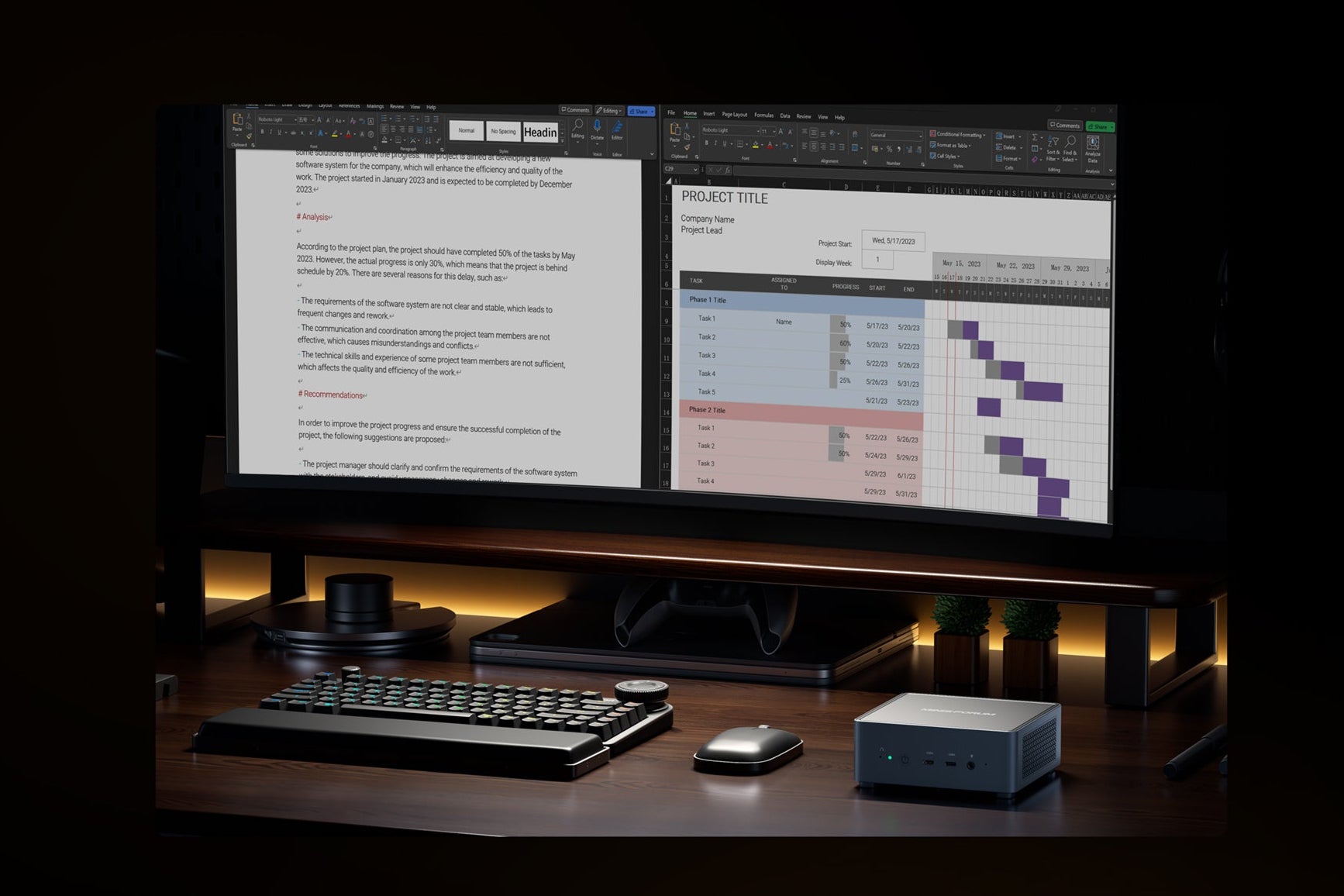

Boosted Productivity
The UM790 Pro guarantees a fast and stable operation of office software with its powerful CPU, high-speed memory and high-capacity SSD.

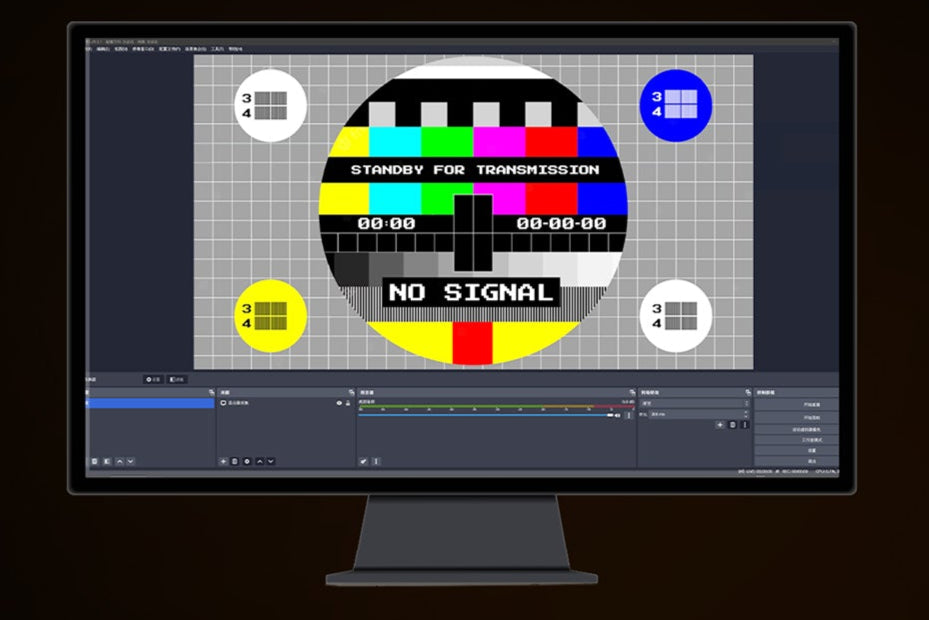

It also supports AV1 and H.265 video encoding/decoding, doubling video length in the same storage space.
It also supports AV1 and H.265 video encoding/decoding, doubling video length in the same storage space.

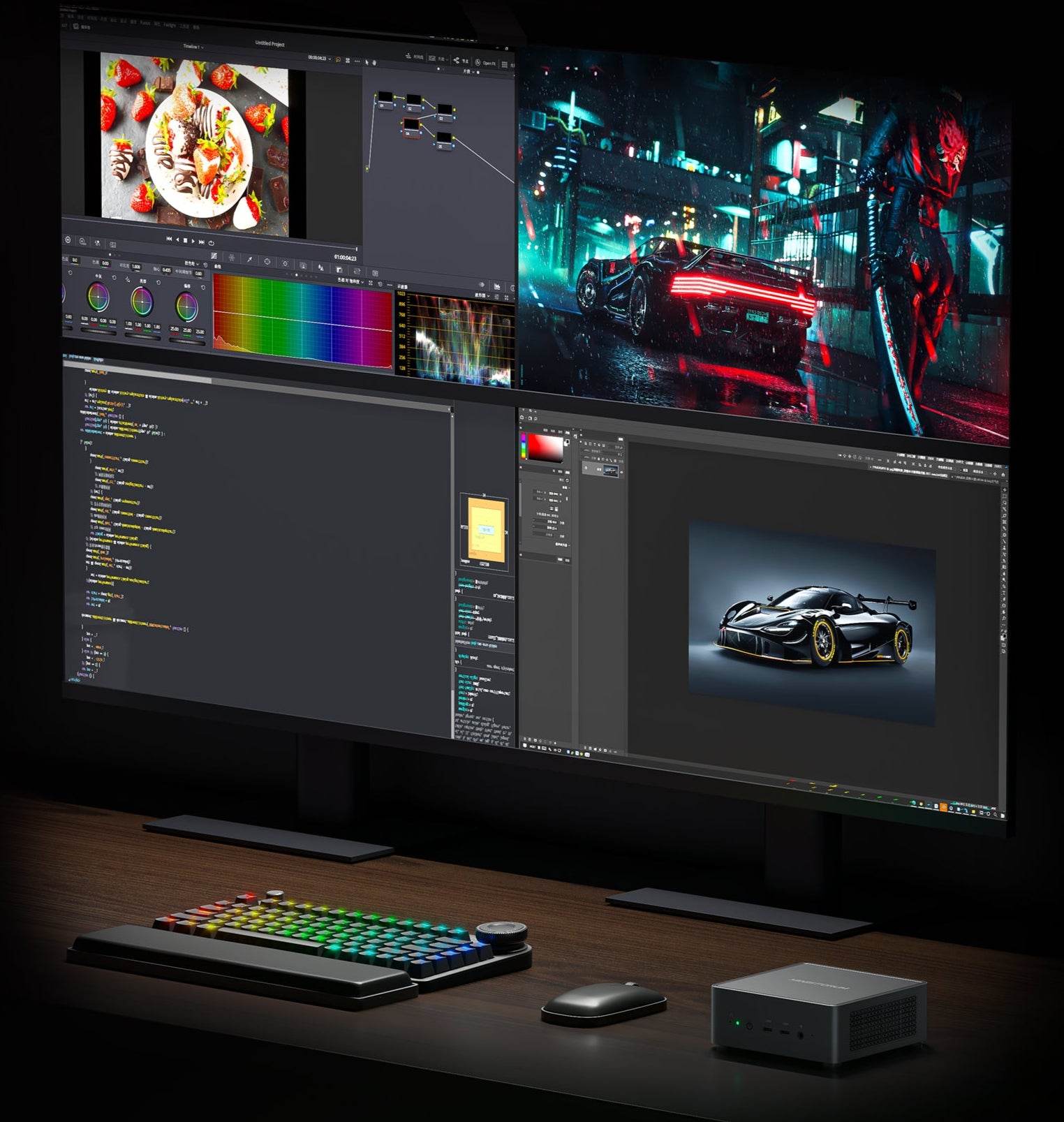

Home Entertainment
Four indenpendent displays with different contents provides a comfortable and relaxed experience.
Power-saving and Energy-efficient
TSMC 4nm Technology, Power-saving and Eco-friendly
Package Contents
Product Specification
AMD Ryzen™ 9 7940HS Processor, 8 Cores/16 Threads
(16M Cache, up to 5.2 GHz)
AMD Radeon™ 780M (Graphics Frequency 2800MHz)
DDR5 Dual channel (SODIMM Slots×2, Up to 5600MHz, Max 64GB)
M.2 2280 PCIe4.0 SSD ×2
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.3)

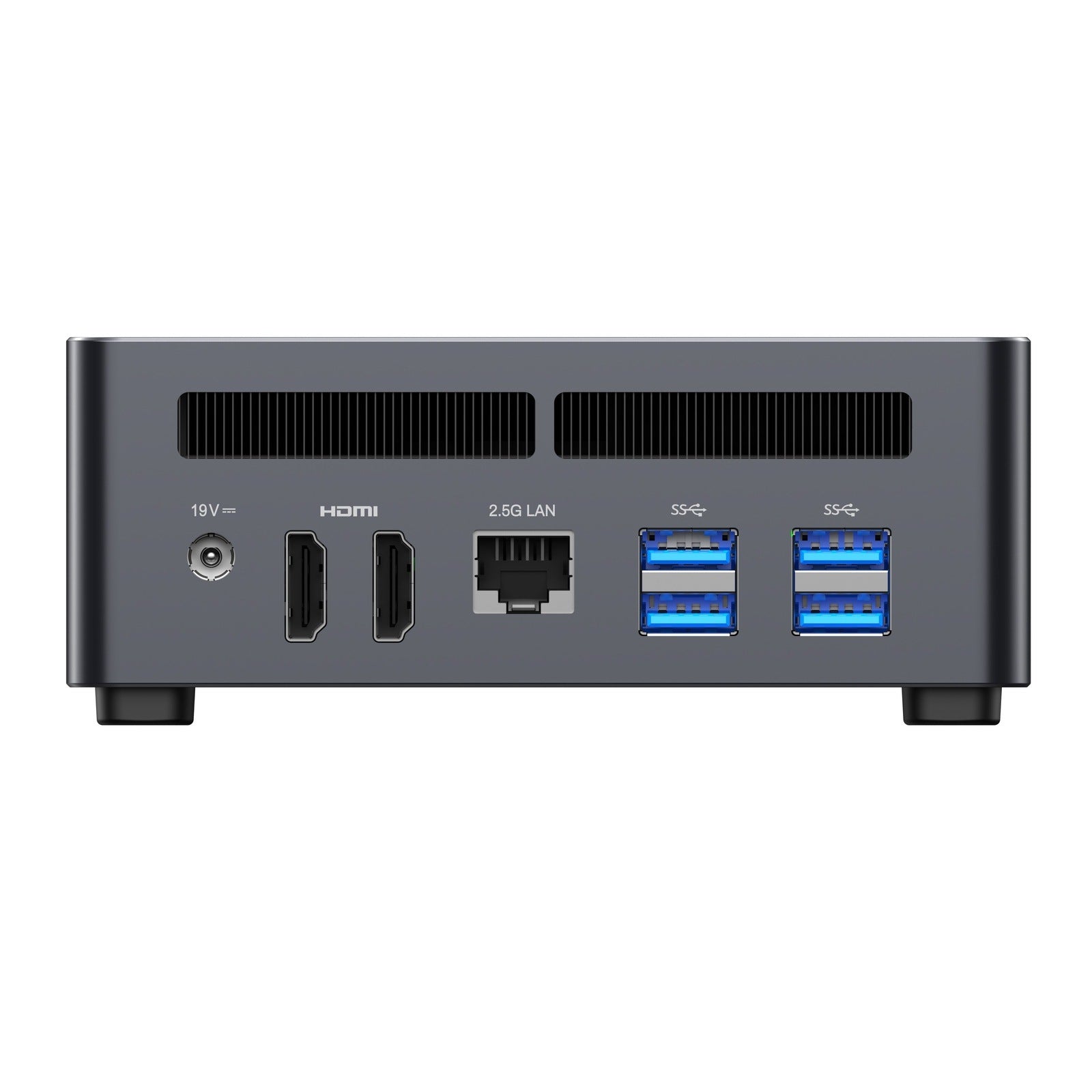

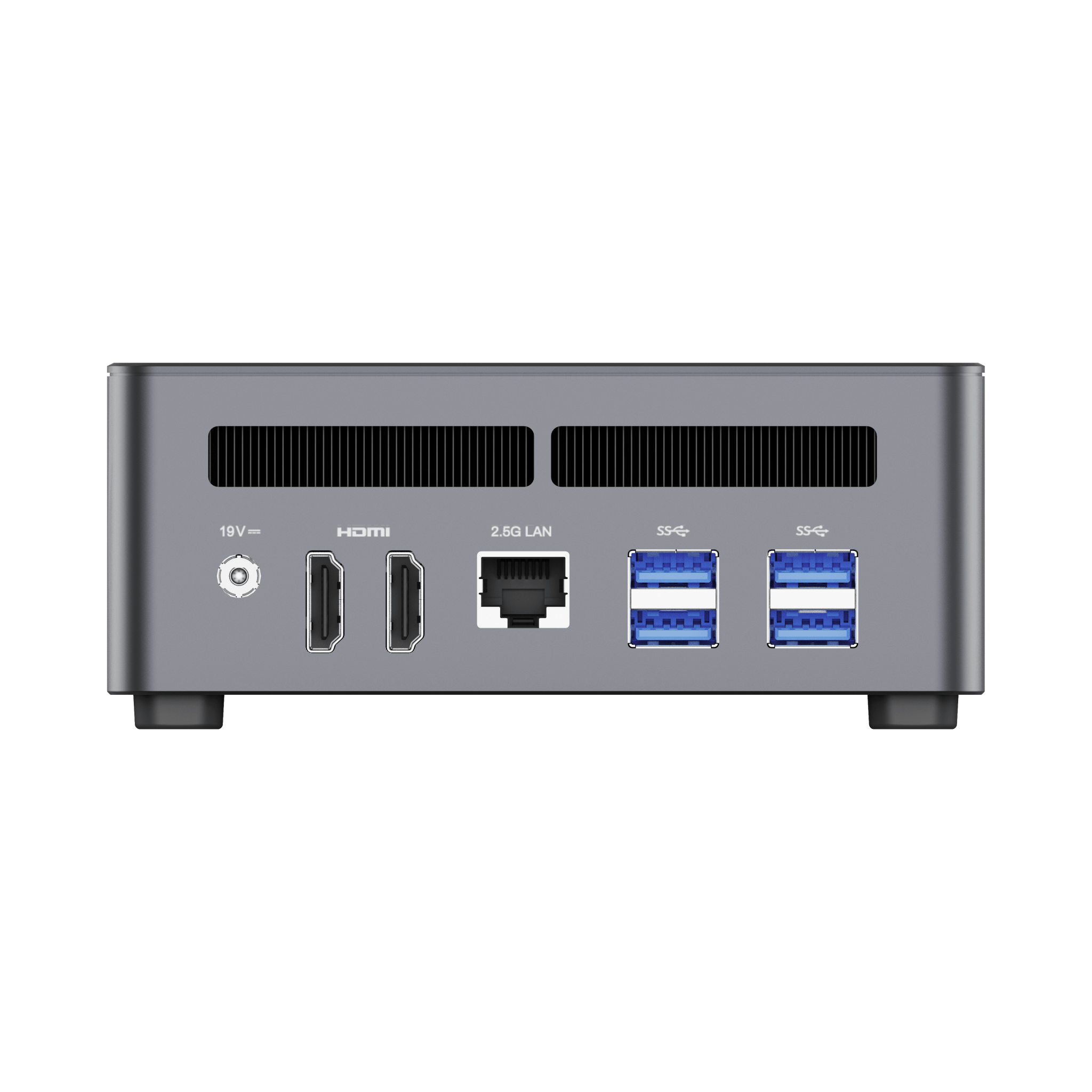

HDMI 2.1 (4K@144Hz) ×2
USB4 (8K@60Hz) ×2
HDMI 2.1 ×2
Audio Jack ×1
RJ45 2.5G Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×4

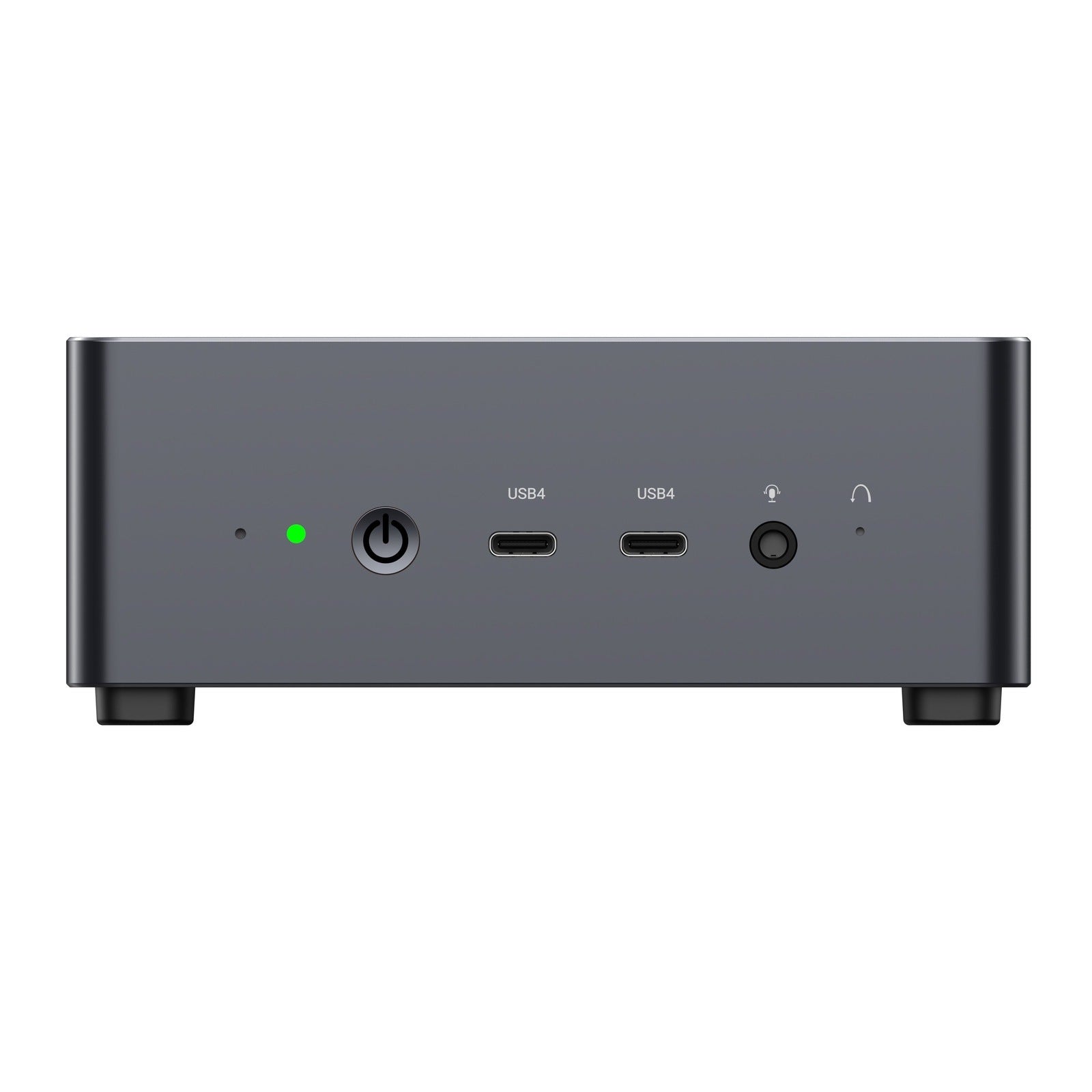

USB4 Port ×2 (Alt PD)
HDMI 2.1 ×2
Audio Jack ×1
DMIC ×1
Clear CMOS ×1
DC 19V (adapter included)
Windows 11
130mm*126mm*52.3mm (5.12*4.96*2.06 inches)
FAQ
1. Brand of SSD and RAM in the UM790 Pro
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
2. What's the spec of the RAM and the SSD of the UM790 Pro?
The RAM: DDR5-5600MHz, 1.1V, CL46
The SSD: M.2 2280 NVMe PCIe4.0 SSD (read speed 4800MB/s)
3. What's the maximum resolution? How many monitors can be connected at the same time?
Up to four monitors can be connected at the same time with a maximum resolution of 8K@60Hz.
4. What's the TDP of the UM790 Pro? Can it be manually adjusted?
The default TDP is 60W, and it can be manually adjusted to 65W.
5. Can I change the speed of the fan?
We are sorry but the fan speed cannot be manually adjusted.
6. Can I use the USB4 ports to power up the UM790 Pro?
The USB4 ports on the UM790 Pro support power delivery, and they can be used as a power supply port.
7. Can I use SSD with heat sink?
No. All versions of the UM790 come with Cold Wave 2.0 (provides an extra active thermal system for RAM and SSD). There is no space to install extra heat sink for the SSD.
8. Can I use double-sided SSD?
Yes, but we do not recommend purchasing double-sided SSD. If customers still prefer the double-sided SSD, please install it on the second M.2 slot so that this SSD and the Wi-Fi card will not overlap.
9. Does it support eGPU?
The UM790 Pro supports eGPU. Please contact the manufacturer of the eGPU docking station to learn more about the compatibility of the device.
10. Does it support overclocking?
We are sorry but right now the UM790 Pro does not support PBO. The engineering team is still evaluating the stability of PBO. It does not support EXPO, either.
11. About RAID0 and RAID1
Please refer to Wikipedia for more information about RAID0 and RAID1. We do not recommend that customers who are new to this function set it up by themselves without proper assistance. We will also post instructions on our social media channels later.
12. Does the UM790 Pro have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 pre-installed. The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11.
13. How do I install Windows OS for the barebones version?
Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer keys for the Windows OS.
https://www.minisforum.com/front/support
